QVVPA26V408SB

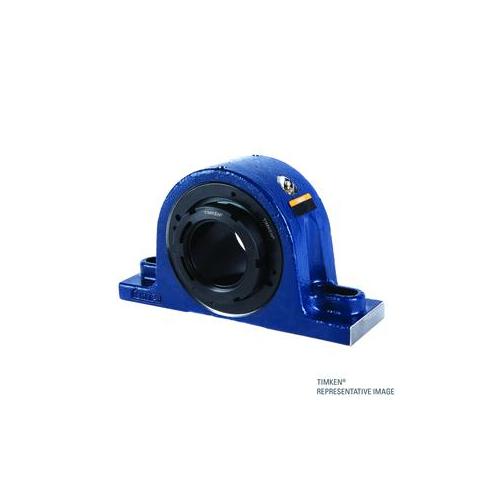

Timken® QVVPA26V408SB QVVPA Pillow Block, 4.5 in Dia Bore, 14.25 to 15.75 in L Bolt Center-to-Center, 6 in Base to Bore Centerline, 17.5 in OAL x 11.18 in OAH
- CP#:
- Item#: QVVPA26V408SB
- Mfr#: QVVPA26V408SB
- UPC: 883450242233
- Reliable mechanical withdrawal, preset spherical inner ring radial internal clearances (feeler gages are not required), quick installation, high shaft-holding power, works well in high-speed applications where shaft centering is an issue
- Double-lip seal with garter spring for maximum contact and a heavy-duty steel shield that protects the seal from large pieces of debris that could damage the seal itself
- Made from nitrile rubber and designed for extreme moisture, fine dust or extremely dirty applications
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QVVPA26V408SB, Pillow Block, Series: QVVPA, 4.5 in Bore, 14.25 to 15.75 in Bolt Center-to-Center Length, 6 in Base to Bore Centerline, 17.5 in Overall Length, 7.02 in Overall Width, 11.18 in Overall Height, 2-Bolt Mounting, Tapered Bore, 5.04 in Base Width, Double V-Lock® Locking Device, B Seal, Non-Expansion (Fixed), 170000 lb Dynamic/212000 lb Static Load, -50 to 200 deg F, 400 rpm Grease/400 rpm Oil Maximum, Steel, Painted
SPECIFICATIONS
| Base Width | : | 5.04 in |
| Base to Bore Centerline | : | 6 in |
| Series | : | QVVPA |
| Bolt Center-to-Center Length | : | 14.25 to 15.75 in |
| Mounting Type | : | 2-Bolt |
| Expansion Type | : | Non-Expansion (Fixed) |
| Locking Device | : | Double V-Lock® |
| Finish | : | Painted |
| Overall Length | : | 17.5 in |
| Load Capacity | : | 170000 lb Dynamic/212000 lb Static |
| Material | : | Steel |
| Maximum Speed | : | 400 rpm Grease/400 rpm Oil |
| Overall Width | : | 7.02 in |
| Inside Diameter | : | 4.5 in |
| Overall Height | : | 11.18 in |
| Measurement System | : | Imperial |
| Seal Type | : | B Seal |
