QVTU22V315ST

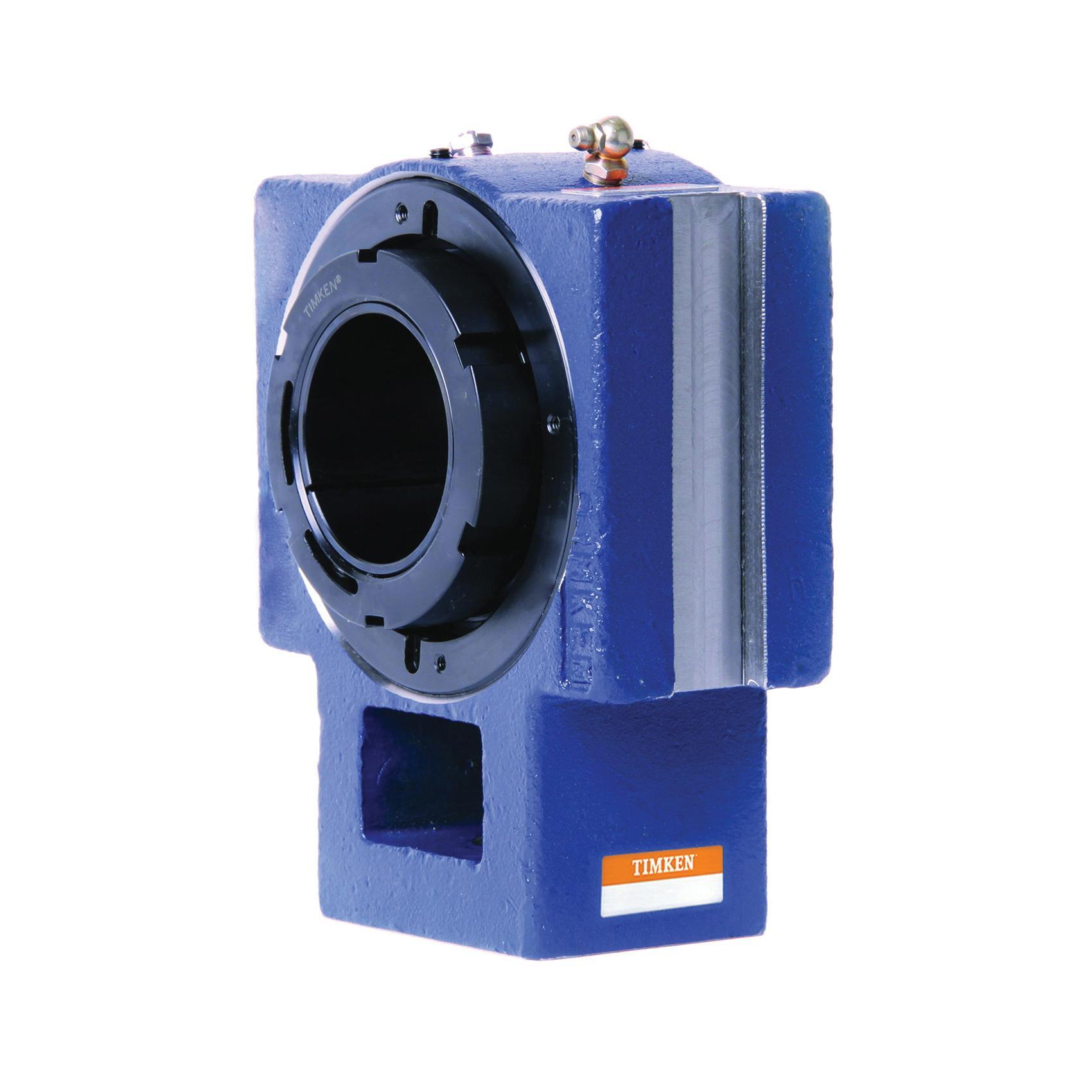

Timken® QVTU22V315ST QVTU Heavy Duty Non-Expansion Take-Up Spherical Roller Bearing Unit, 3-15/16 in Dia Bore, 11.69 in L x 4.13 in W x 9.44 in H, 125000 lb Dynamic/147000 lb Static Load
- CP#:
- Item#: QVTU22V315ST
- Mfr#: QVTU22V315ST
- UPC: 883450361132
- Patented V-Lock® mechanism evenly distributes force on the shaft, helping eliminate fretting corrosion
- Maximum holding power and prevention of overtightening
- Reliable mechanical withdraw
- Preset spherical inner ring radial internal clearances
- Single nut
- 22222 bearing insert bore series
- Cast steel housing
- Wide slot mounting
- Tapered bore, double row and open end
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Timken® solid block mounted spherical roller bearings (housed units) feature high-performance, low operating temperature Timken® double row spherical roller bearings, cast steel housings, unique locking and sealing design options to offer protection against contaminants in the harshest environments. Timken® spherical roller bearings are ideal for handling high radial loads.
Timken®, QVTU22V315ST, Take-Up Spherical Roller Bearing Unit, Heavy Duty Non-Expansion, Series: QVTU, 3-15/16 in Bore, 11.69 in Length, 4.13 in Width, 9.44 in Height, 125000 lb Dynamic/147000 lb Static Load, Steel Bearing, 32 to 104 deg F, Powder Coated

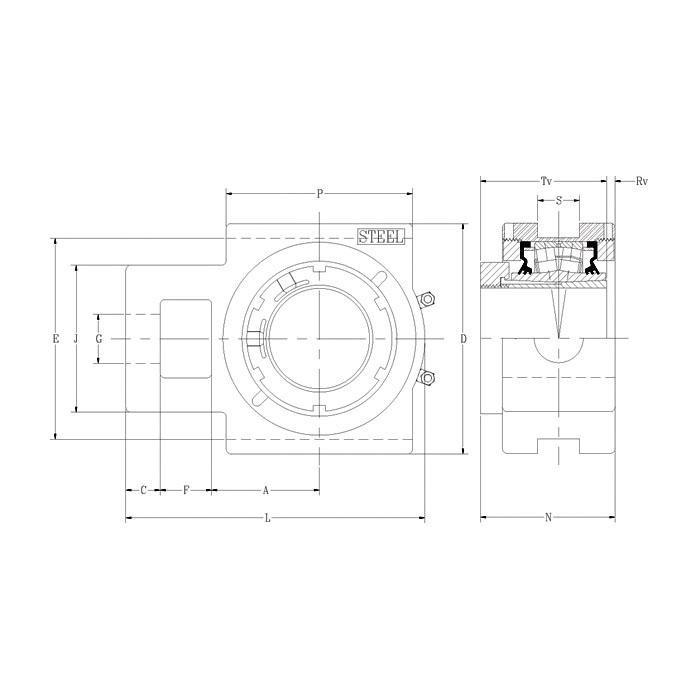

SPECIFICATIONS
| Series | : | QVTU |
| Bearing Material | : | Steel |
| Finish | : | Powder Coated |
| Height | : | 9.44 in |
| Length | : | 11.69 in |
| Load Capacity | : | 125000 lb Dynamic/147000 lb Static |
| Inside Diameter | : | 3-15/16 in |
| Width | : | 4.13 in |
| Measurement System | : | Imperial |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_DVC13K203SM_Catalog.pdf
