QVPH20V307SM
Timken® QVPH20V307SM Pillow Block Spherical Roller Bearing Unit, 3-7/16 in Dia Bore, 10.88 to 13.38 in L Bolt Center-to-Center, 4-1/2 in Base to Bore Centerline, 15 in OAL x 8.54 in OAH
- CP#:
- Item#: QVPH20V307SM
- Mfr#: QVPH20V307SM
- UPC: 883450053655
- Patented V-Lock® mechanism evenly distributes force on the shaft, helping eliminate fretting corrosion
- Maximum holding power and prevention of overtightening
- Reliable mechanical withdraw
- Preset spherical inner ring radial internal clearances
- Quick installation
- Double row bearing
- 22220 bearing insert bore series
- Works well with high-speed applications where shaft centering is an issue
- Triple-lip contacting, self-purging nitrile rubber seal is excellent in moist and dirty applications, chemical and corrosion-resistant
- Bearing steel
- Open end type
- 360 deg shaft holding
- Designed to eliminate over-tightening
- Mechanical withdrawal for easier removal
- Larger bearings and higher load rating compared to competitive products having same bore size
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Timken® solid block mounted spherical roller bearings (housed units) feature high-performance, low operating temperature Timken® double row spherical roller bearings, cast steel housings, unique locking and sealing design options to offer protection against contaminants in the harshest environments. Timken® spherical roller bearings are ideal for handling high radial loads.
Timken®, QVPH20V307SM, Pillow Block Spherical Roller Bearing Unit, 3-7/16 in Bore, 10.88 to 13.38 in Bolt Center-to-Center Length, 4-1/2 in Base to Bore Centerline, 15 in Overall Length, 4.19 in Overall Width, 8.54 in Overall Height, Four-Bolt Base Mounting, Tapered Bore, 4.31 in Base Width, Single V-Lock® Locking Device, Triple Lip M Seal, Non-Expansion (Fixed), 97700 lb Dynamic/113000 lb Static Load, 1200 rpm Maximum, Cast Steel, Powder Coated

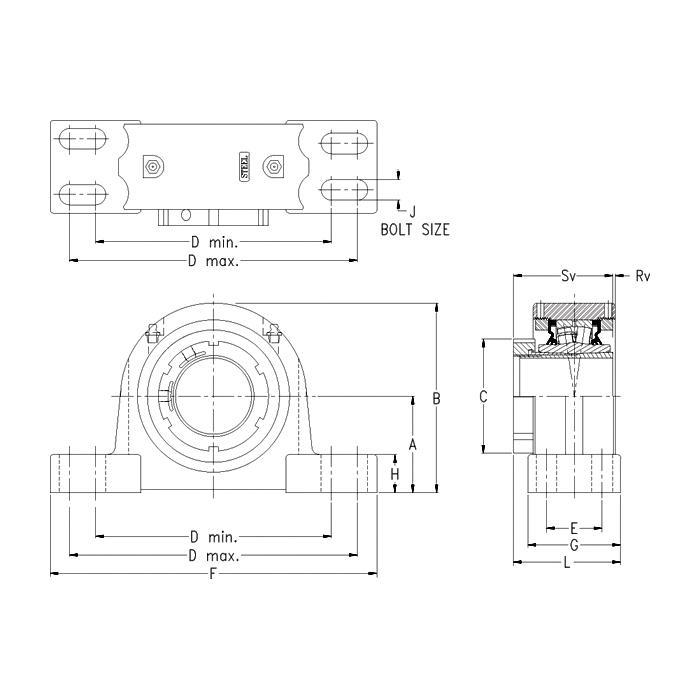

SPECIFICATIONS
| Base Width | : | 4.31 in |
| Base to Bore Centerline | : | 4-1/2 in |
| Bolt Center-to-Center Length | : | 10.88 to 13.38 in |
| Mounting Type | : | Four-Bolt Base |
| Expansion Type | : | Non-Expansion (Fixed) |
| Locking Device | : | Single V-Lock® |
| Finish | : | Powder Coated |
| Overall Length | : | 15 in |
| Load Capacity | : | 97700 lb Dynamic/113000 lb Static |
| Material | : | Cast Steel |
| Maximum Speed | : | 1200 rpm |
| Overall Width | : | 4.19 in |
| Inside Diameter | : | 3-7/16 in |
| Overall Height | : | 8.54 in |
| Measurement System | : | Imperial |
| Seal Type | : | Triple Lip M |
