QVPF28V415SEM

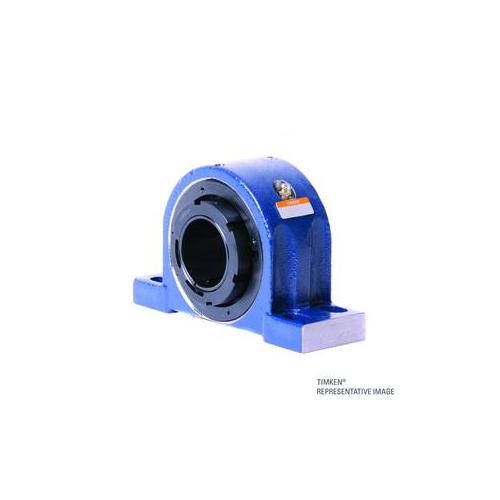

Timken® QVPF28V415SEM Pillow Block, 4.9375 in Dia Bore, 13.75 to 15.88 in L Bolt Center-to-Center, 5.5 in Base to Bore Centerline, 17.5 in OAL x 11.01 in OAH
- CP#:
- Item#: QVPF28V415SEM
- Mfr#: QVPF28V415SEM
- UPC: 883450088640
- Reliable mechanical withdrawal, preset spherical inner ring radial internal clearances (feeler gages are not required), quick installation, high shaft-holding power, works well in high-speed applications where shaft centering is an issue
- Medium Duty contact triple-lip seal, made of nitrile rubber, offers superior sealing in moist and dirty applications
- It is chemical and corrosion resistant and provides excellent lubrication retention
- It also allows excess grease to purge from the bearing cavity
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QVPF28V415SEM, Pillow Block, 4.9375 in Bore, 13.75 to 15.88 in Bolt Center-to-Center Length, 5.5 in Base to Bore Centerline, 17.5 in Overall Length, 6.03 in Overall Width, 11.01 in Overall Height, 4-Bolt Mounting, Tapered Bore, 5.04 in Base Width, Single V-Lock® Locking Device, M Seal, Expansion, 863000 N Dynamic/1060000 N Static Load, -50 to 200 deg F, 650 rpm Grease/650 rpm Oil Maximum, Steel
SPECIFICATIONS
| Base Width | : | 5.04 in |
| Base to Bore Centerline | : | 5.5 in |
| Bolt Center-to-Center Length | : | 13.75 to 15.88 in |
| Mounting Type | : | 4-Bolt |
| Expansion Type | : | Expansion |
| Locking Device | : | Single V-Lock® |
| Overall Length | : | 17.5 in |
| Load Capacity | : | 863000 N Dynamic/1060000 N Static |
| Material | : | Steel |
| Maximum Speed | : | 650 rpm Grease/650 rpm Oil |
| Overall Width | : | 6.03 in |
| Inside Diameter | : | 4.9375 in |
| Overall Height | : | 11.01 in |
| Measurement System | : | Imperial |
| Seal Type | : | M Seal |
