QVPA20V307ST

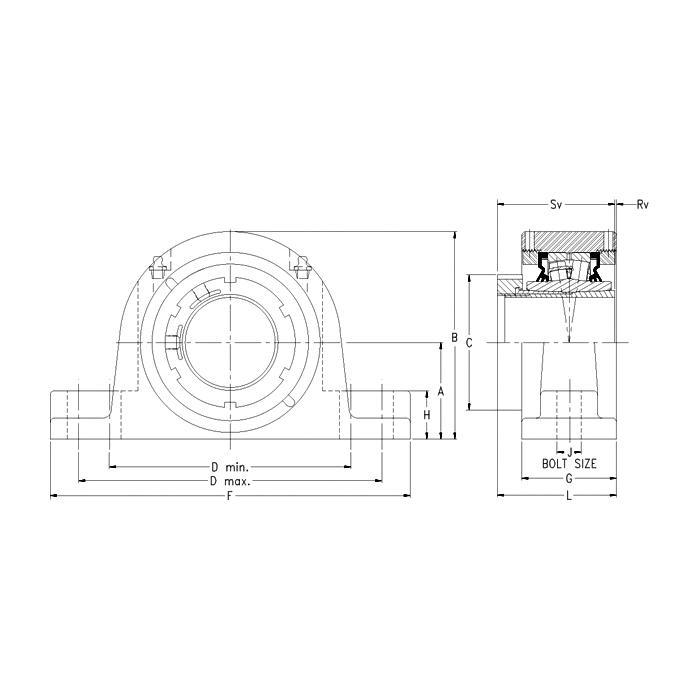

Timken® QVPA20V307ST Pillow Block Spherical Roller Bearing Unit, 3-7/16 in Dia Bore, 10.88 to 12.88 in L Bolt Center-to-Center, 4-1/2 in Base to Bore Centerline, 14-1/2 in OAL x 8.63 in OAH
- CP#:
- Item#: QVPA20V307ST
- Mfr#: QVPA20V307ST
- UPC: 883450244640
- Patented V-Lock® mechanism evenly distributes force on the shaft, helping eliminate fretting corrosion
- Maximum holding power and prevention of overtightening
- Reliable mechanical withdraw
- Preset spherical inner ring radial internal clearances
- Quick installation
- Double row bearing
- 22220 bearing insert bore series
- Works well with high-speed applications where shaft centering is an issue
- Bearing steel
- Open end type
- 360 deg shaft holding
- Designed to eliminate over-tightening
- Mechanical withdrawal for easier removal
- Larger bearings and higher load rating compared to competitive products having same bore size
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Timken® solid block mounted spherical roller bearings (housed units) feature high-performance, low operating temperature Timken® double row spherical roller bearings, cast steel housings, unique locking and sealing design options to offer protection against contaminants in the harshest environments. Timken® spherical roller bearings are ideal for handling high radial loads.
Timken®, QVPA20V307ST, Pillow Block Spherical Roller Bearing Unit, 3-7/16 in Bore, 10.88 to 12.88 in Bolt Center-to-Center Length, 4-1/2 in Base to Bore Centerline, 14-1/2 in Overall Length, 4.02 in Overall Width, 8.63 in Overall Height, Two-Bolt Base Mounting, 3.42 in Base Width, Single V-Lock® Locking Device, Non-Expansion (Fixed), 97700 lb Dynamic/113000 lb Static Load, 1600 rpm Grease/2000 rpm Oil Maximum, Cast Steel, Powder Coated
SPECIFICATIONS
| Base Width | : | 3.42 in |
| Base to Bore Centerline | : | 4-1/2 in |
| Bolt Center-to-Center Length | : | 10.88 to 12.88 in |
| Mounting Type | : | Two-Bolt Base |
| Expansion Type | : | Non-Expansion (Fixed) |
| Locking Device | : | Single V-Lock® |
| Finish | : | Powder Coated |
| Overall Length | : | 14-1/2 in |
| Load Capacity | : | 97700 lb Dynamic/113000 lb Static |
| Material | : | Cast Steel |
| Maximum Speed | : | 1600 rpm Grease/2000 rpm Oil |
| Overall Width | : | 4.02 in |
| Inside Diameter | : | 3-7/16 in |
| Overall Height | : | 8.63 in |
| Measurement System | : | Imperial |
| Seal Type | : | Labyrinth T |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_DVP10K111SM_Catalog.pdf
