QVFY12V203SM

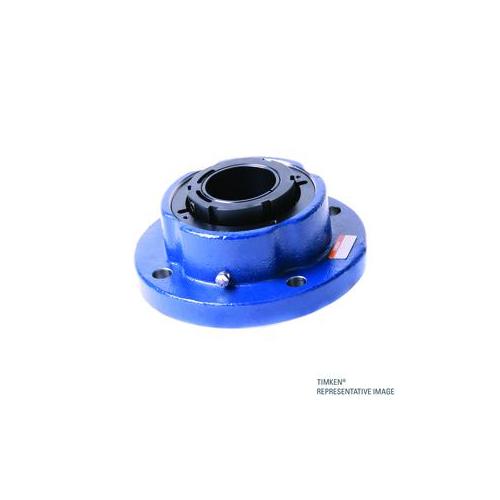

Timken® QVFY12V203SM QVFY Single V-Lock Round Flange Block, 2.1875 in Dia Bore, 4.51 in L Bolt Center-to-Center, 6.38 in Dia Bolt Circle, Round Flange Flange Mount, 7.75 in OAL/Dia
- CP#:
- Item#: QVFY12V203SM
- Mfr#: QVFY12V203SM
- UPC: 883450092494
- Reliable mechanical withdrawal, preset spherical inner ring radial internal clearances (feeler gages are not required), quick installation, high shaft-holding power, works well in high-speed applications where shaft centering is an issue
- Medium Duty contact triple-lip seal, made of nitrile rubber, offers superior sealing in moist and dirty applications
- It is chemical and corrosion resistant and provides excellent lubrication retention
- It also allows excess grease to purge from the bearing cavity
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QVFY12V203SM, Round Flange Block, Single V-Lock, Series: QVFY, 2.1875 in Bore, 4.51 in Bolt Center-to-Center Length, 6.38 in Diameter Bolt Circle, Round Flange Flange Mounting, 7.75 in Overall Length/Diameter, 3.15 in Overall Depth, 7.75 in Overall Height, Single V-Lock® Locking Device, Steel Bearing, Nitrile Rubber Seal, 169000 N Dynamic/174000 N Static Load, 2600 rpm Grease/3500 rpm Oil Maximum, -50 to 200 deg F, Painted
SPECIFICATIONS
| Bolt Center-to-Center Length | : | 4.51 in |
| Series | : | QVFY |
| Bolt Circle Diameter | : | 6.38 in |
| Bearing Material | : | Steel |
| Finish | : | Painted |
| Flange Mounting Type | : | Round Flange |
| Locking Device | : | Single V-Lock® |
| Load Capacity | : | 169000 N Dynamic/174000 N Static |
| Maximum Speed | : | 2600 rpm Grease/3500 rpm Oil |
| Overall Depth | : | 3.15 in |
| Overall Height | : | 7.75 in |
| Inside Diameter | : | 2.1875 in |
| Overall Length/Diameter | : | 7.75 in |
| Seal Material | : | Nitrile Rubber |
| Measurement System | : | Imperial |
