QVFK17V215SM

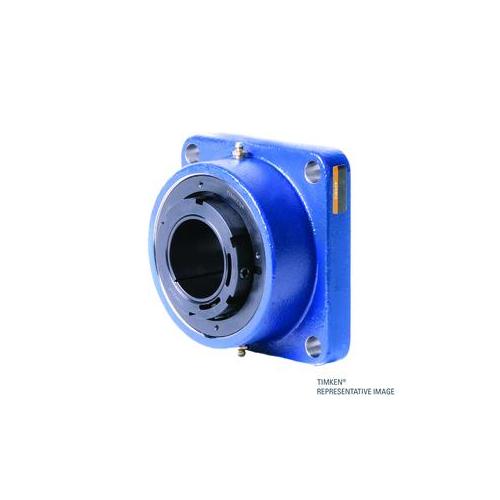

Timken® QVFK17V215SM QVFK Square Flange Block, 2.9375 in Dia Bore, 6.72 in L Bolt Center-to-Center, 9.5 in Dia Bolt Circle, 4-Bolt Square Flange Mount, 8.38 in OAL/Dia
- CP#:
- Item#: QVFK17V215SM
- Mfr#: QVFK17V215SM
- UPC: 883450340908
- Reliable mechanical withdrawal, preset spherical inner ring radial internal clearances (feeler gages are not required), quick installation, high shaft-holding power, works well in high-speed applications where shaft centering is an issue
- Medium Duty contact triple-lip seal, made of nitrile rubber, offers superior sealing in moist and dirty applications
- It is chemical and corrosion resistant and provides excellent lubrication retention
- It also allows excess grease to purge from the bearing cavity
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QVFK17V215SM, Square Flange Block, Series: QVFK, 2.9375 in Bore, 6.72 in Bolt Center-to-Center Length, 9.5 in Diameter Bolt Circle, 4-Bolt Square Flange Mounting, 8.38 in Overall Length/Diameter, 3.64 in Overall Depth, 8.38 in Overall Height, Single V-Lock® Locking Device, Steel Bearing, Nitrile Rubber Seal, 297000 N Dynamic/320000 N Static Load, 1400 rpm Grease/1400 rpm Oil Maximum, -50 to 200 deg F, Painted
SPECIFICATIONS
| Bolt Center-to-Center Length | : | 6.72 in |
| Series | : | QVFK |
| Bolt Circle Diameter | : | 9.5 in |
| Bearing Material | : | Steel |
| Finish | : | Painted |
| Flange Mounting Type | : | 4-Bolt Square |
| Locking Device | : | Single V-Lock® |
| Load Capacity | : | 297000 N Dynamic/320000 N Static |
| Maximum Speed | : | 1400 rpm Grease/1400 rpm Oil |
| Overall Depth | : | 3.64 in |
| Overall Height | : | 8.38 in |
| Inside Diameter | : | 2.9375 in |
| Overall Length/Diameter | : | 8.38 in |
| Seal Material | : | Nitrile Rubber |
| Measurement System | : | Imperial |
