QVCW14V208SM

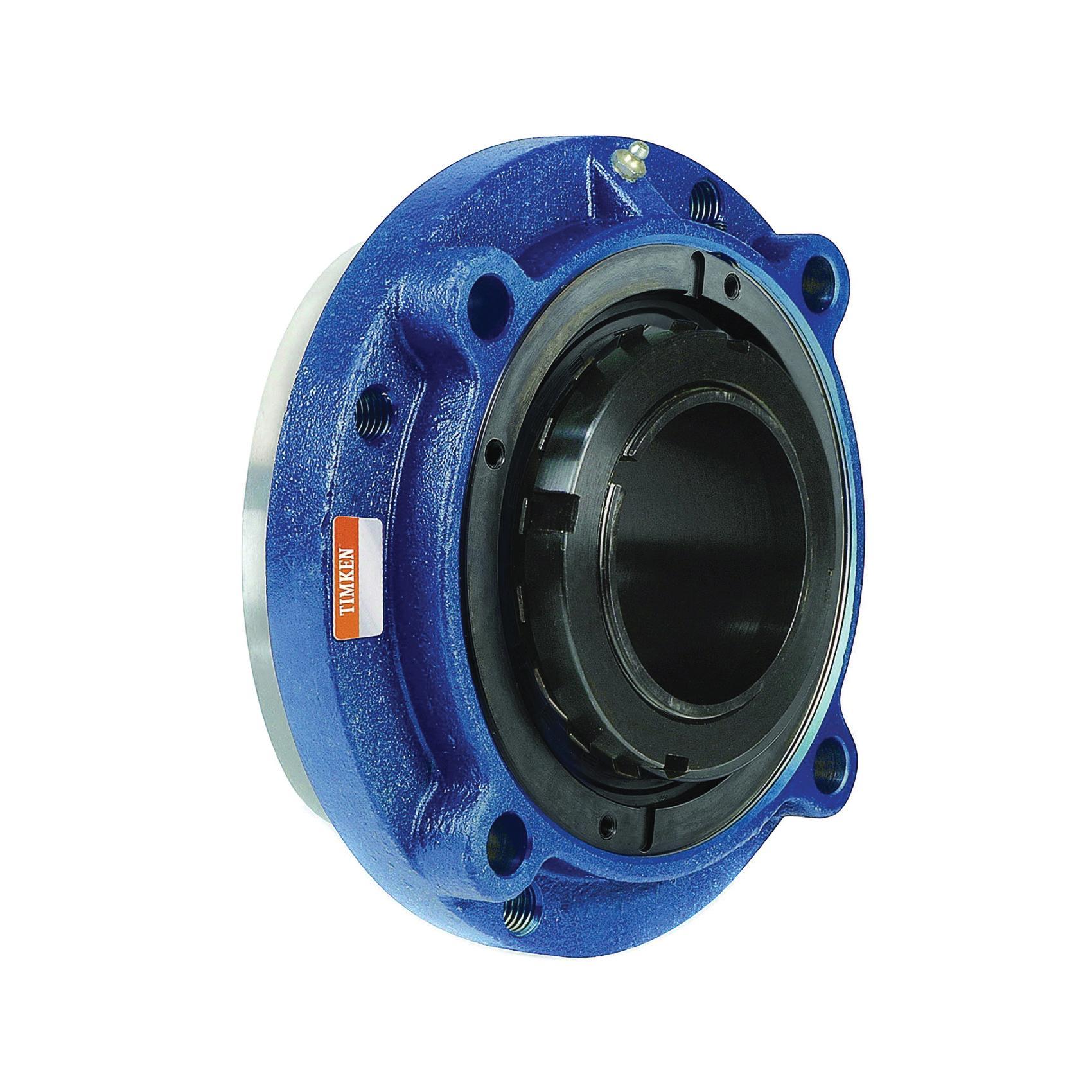

Timken® QVCW14V208SM Heavy Duty Non-Expansion Tapered Bore Spherical Roller Bearing Unit, 2-1/2 in Dia Bore, 4.6 in L Bolt Center-to-Center, 6-1/2 in Dia Bolt Circle, 4-Bolt Piloted Flange Mount, 7.63 in OAL/Dia
- CP#:
- Item#: QVCW14V208SM
- Mfr#: QVCW14V208SM
- UPC: 883450185943
- Patented V-Lock® mechanism evenly distributes force on the shaft, helping eliminate fretting corrosion
- Maximum holding power and prevention of overtightening
- Reliable mechanical withdraw
- Preset spherical inner ring radial internal clearances
- Quick installation
- Works well with high-speed applications where shaft centering is an issue
- Triple-lip contacting, self-purging nitrile rubber seal is excellent in moist and dirty applications, chemical and corrosion resistant
- Double row bearing
- Cast steel housing
- Open end type
- Solid block housing
- Do not operate at bearing temperatures above 250 deg F
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Timken® solid block mounted spherical roller bearings (housed units) feature high-performance, low operating temperature Timken® double row spherical roller bearings, cast steel housings, unique locking and sealing design options to offer protection against contaminants in the harshest environments. Timken® spherical roller bearings are ideal for handling high radial loads.

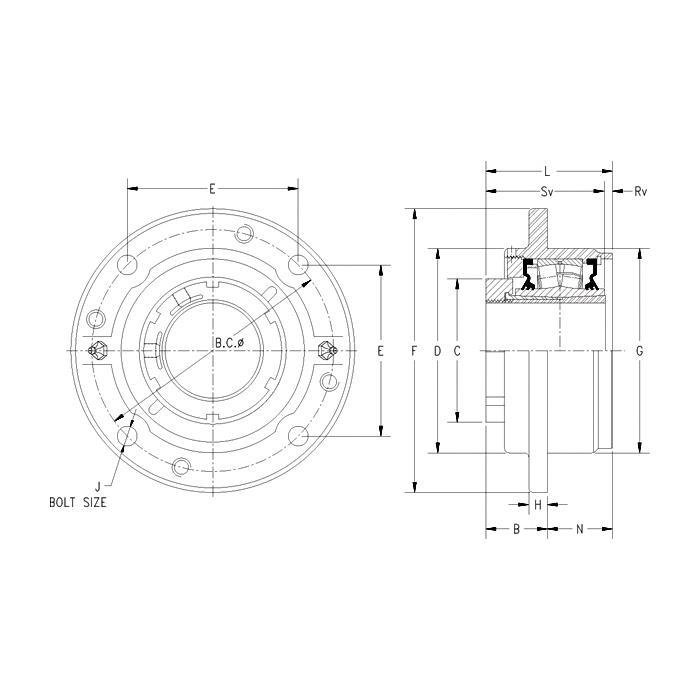

Timken®, QVCW14V208SM, Spherical Roller Bearing Unit, Heavy Duty Non-Expansion Tapered Bore, 2-1/2 in Bore, 4.6 in Bolt Center-to-Center Length, 6-1/2 in Diameter Bolt Circle, 4-Bolt Piloted Flange Mounting, 7.63 in Overall Length/Diameter, 3.4 in Overall Depth, Single V-Lock® Locking Device, Steel Bearing, Nitrile Rubber Seal, 47800 lb Dynamic/52000 lb Static Load, 1700 rpm Maximum, -40 to 250 deg F, Powder Coated
SPECIFICATIONS
| Bolt Center-to-Center Length | : | 4.6 in |
| Bolt Circle Diameter | : | 6-1/2 in |
| Bearing Material | : | Steel |
| Finish | : | Powder Coated |
| Flange Mounting Type | : | 4-Bolt Piloted |
| Locking Device | : | Single V-Lock® |
| Load Capacity | : | 47800 lb Dynamic/52000 lb Static |
| Maximum Speed | : | 1700 rpm |
| Overall Depth | : | 3.4 in |
| Inside Diameter | : | 2-1/2 in |
| Overall Length/Diameter | : | 7.63 in |
| Seal Material | : | Nitrile Rubber |
| Measurement System | : | Imperial |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_DVC13K203SM_Catalog.pdf
