QVC14V208ST

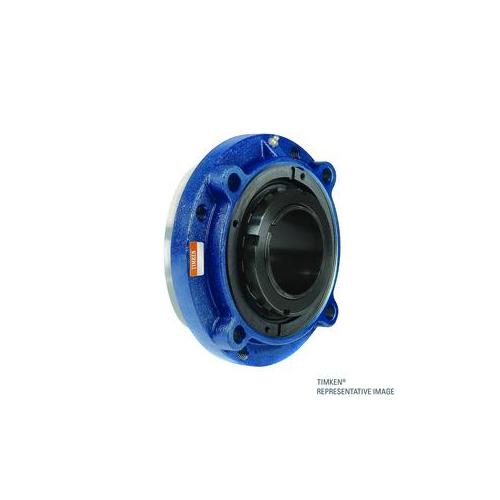

Timken® QVC14V208ST QVC Single V-Lock Piloted Flange Cartridge, 2.5 in Dia Bore, 4.6 in L Bolt Center-to-Center, 6.5 in Dia Bolt Circle, Piloted Flange Mount, 7.63| in OAL/Dia
- CP#:
- Item#: QVC14V208ST-P01
- Mfr#: QVC14V208ST
- UPC: 883450104999
- Reliable mechanical withdrawal, preset spherical inner ring radial internal clearances (feeler gages are not required), quick installation, high shaft-holding power, works well in high-speed applications where shaft centering is an issue
- Labyrinth seal consists of a Teflon ring pressed onto the inner ring of the bearing that floats between two pieces of formed steel to accommodate misalignment
- When using this seal, the housing comes with a vent fitting
- Developed for higher-speed applications involving dirty conditions or moisture-affected areas, is able to operate at higher temperatures and is impervious to most chemicals
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QVC14V208ST, Piloted Flange Cartridge, Single V-Lock, Series: QVC, 2.5 in Bore, 4.6 in Bolt Center-to-Center Length, 6.5 in Diameter Bolt Circle, Piloted Flange Mounting, 7.63| in Overall Length/Diameter, 3.33 in Overall Depth, Single V-Lock® Locking Device, Steel Bearing, Teflon Seal, 213000 N Dynamic/231000 N Static Load, 2600 rpm Grease/3050 rpm Oil Maximum, -100 to 500 deg F, Painted
SPECIFICATIONS
| Bolt Center-to-Center Length | : | 4.6 in |
| Series | : | QVC |
| Bolt Circle Diameter | : | 6.5 in |
| Bearing Material | : | Steel |
| Finish | : | Painted |
| Flange Mounting Type | : | Piloted |
| Locking Device | : | Single V-Lock® |
| Load Capacity | : | 213000 N Dynamic/231000 N Static |
| Maximum Speed | : | 2600 rpm Grease/3050 rpm Oil |
| Overall Depth | : | 3.33 in |
| Overall Length/Diameter | : | 7.63 in |
| Seal Material | : | Teflon |
