QVC14V065SM

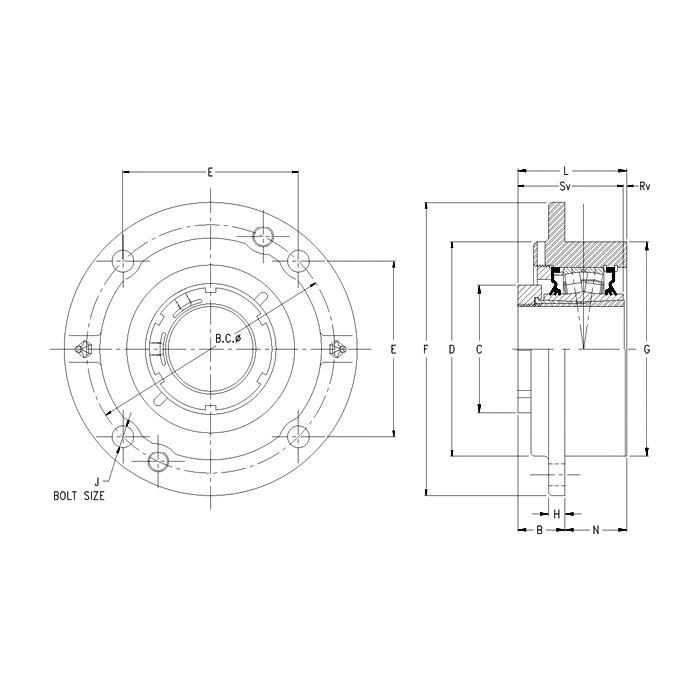

Timken® QVC14V065SM Heavy Duty Non-Expansion Tapered Bore Spherical Roller Bearing Unit, 65 mm Dia Bore, 116.8 mm L Bolt Center-to-Center, 165.1 mm Dia Bolt Circle, 4-Bolt Piloted Flange Mount, 193.8 mm OAL/Dia
- CP#:
- Item#: QVC14V065SM-P01
- Mfr#: QVC14V065SM
- UPC: 883450184052
- Patented V-Lock® mechanism evenly distributes force on the shaft, helping eliminate fretting corrosion
- Maximum holding power and prevention of overtightening
- Reliable mechanical withdraw
- Preset spherical inner ring radial internal clearances
- Quick installation
- Works well with high-speed applications where shaft centering is an issue
- Triple-lip contacting, self-purging nitrile rubber seal is excellent in moist and dirty applications, chemical and corrosion resistant
- Double row bearing
- Cast steel housing
- Open end type
- Solid block housing
- Do not operate at bearing temperatures above 121 deg C
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Timken® solid block mounted spherical roller bearings (housed units) feature high-performance, low operating temperature Timken® double row spherical roller bearings, cast steel housings, unique locking and sealing design options to offer protection against contaminants in the harshest environments. Timken® spherical roller bearings are ideal for handling high radial loads.
Timken®, QVC14V065SM, Spherical Roller Bearing Unit, Heavy Duty Non-Expansion Tapered Bore, 65 mm Bore, 116.8 mm Bolt Center-to-Center Length, 165.1 mm Diameter Bolt Circle, 4-Bolt Piloted Flange Mounting, 193.8 mm Overall Length/Diameter, 84.6 mm Overall Depth, Single V-Lock® Locking Device, Steel Bearing, Nitrile Rubber Seal, 47800 lb Dynamic/52000 lb Static Load, 1700 rpm Maximum, -40 to 121 deg C, Powder Coated
SPECIFICATIONS
| Bolt Center-to-Center Length | : | 116.8 mm |
| Bolt Circle Diameter | : | 165.1 mm |
| Bearing Material | : | Steel |
| Finish | : | Powder Coated |
| Flange Mounting Type | : | 4-Bolt Piloted |
| Locking Device | : | Single V-Lock® |
| Load Capacity | : | 47800 lb Dynamic/52000 lb Static |
| Maximum Speed | : | 1700 rpm |
| Overall Depth | : | 84.6 mm |
| Overall Length/Diameter | : | 193.8 mm |
| Seal Material | : | Nitrile Rubber |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_DVC13K203SM_Catalog.pdf
