QMPX30J515SM

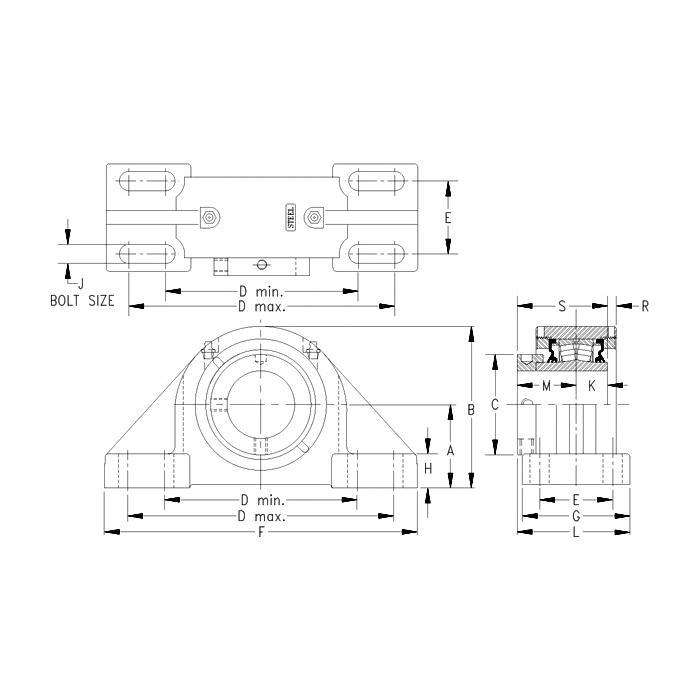

Timken® QMPX30J515SM 5000 Pillow Block Spherical Roller Bearing Unit, 5-15/16 in Dia Bore, 19-1/4 to 21-3/4 in L Bolt Center-to-Center, 7.063 in Base to Bore Centerline, 22 in OAL x 13.38 in OAH
- CP#:
- Item#: QMPX30J515SM
- Mfr#: QMPX30J515SM
- UPC: 883450159654
- Reduced eccentric offset locking collar results in a secure shaft lock that is designed not to release from a properly prepared shaft
- Suitable for reversing applications
- Triple-lip contacting, self-purging nitrile rubber seal is excellent in moist and dirty applications, chemical and corrosion resistant
- Bearing steel
- Open end type
- Double row bearing
- 23230 bearing insert bore series
- Increased shaft holding power
- Reduced shaft damage under extreme shock loads
- Designed not to release in reversing applications
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Timken® solid block mounted spherical roller bearings (housed units) feature high-performance, low operating temperature Timken® double row spherical roller bearings, cast steel housings, unique locking and sealing design options to offer protection against contaminants in the harshest environments. Timken® spherical roller bearings are ideal for handling high radial loads.
Timken®, QMPX30J515SM, Pillow Block Spherical Roller Bearing Unit, Series: 5000, 5-15/16 in Bore, 19-1/4 to 21-3/4 in Bolt Center-to-Center Length, 7.063 in Base to Bore Centerline, 22 in Overall Length, 7-3/4 in Overall Width, 13.38 in Overall Height, Four-Bolt Base Mounting, Cylindrical Bore, 6-3/4 in Base Width, Eccentric Locking Device, Triple Lip M Seal, Non-Expansion (Fixed), 286000 lb Dynamic/372000 lb Static Load, 600 rpm Grease/650 rpm Oil Maximum, Cast Steel, Powder Coated
SPECIFICATIONS
| Base Width | : | 6-3/4 in |
| Base to Bore Centerline | : | 7.063 in |
| Series | : | 5000 |
| Bolt Center-to-Center Length | : | 19-1/4 to 21-3/4 in |
| Mounting Type | : | Four-Bolt Base |
| Expansion Type | : | Non-Expansion (Fixed) |
| Locking Device | : | Eccentric |
| Finish | : | Powder Coated |
| Overall Length | : | 22 in |
| Load Capacity | : | 286000 lb Dynamic/372000 lb Static |
| Material | : | Cast Steel |
| Maximum Speed | : | 600 rpm Grease/650 rpm Oil |
| Overall Width | : | 7-3/4 in |
| Inside Diameter | : | 5-15/16 in |
| Overall Height | : | 13.38 in |
| Measurement System | : | Imperial |
| Seal Type | : | Triple Lip M |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_DVP10K111SM_Catalog.pdf
