QMPR18J308SEM

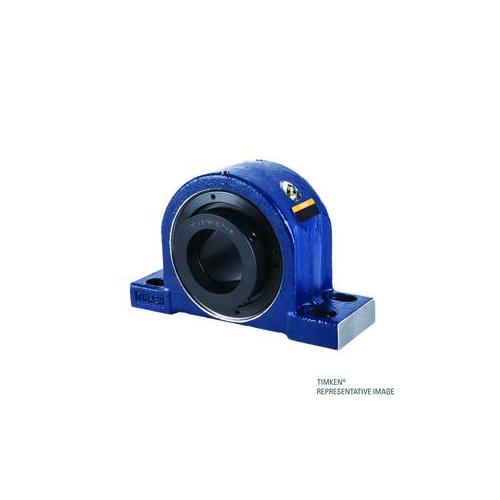

Timken® QMPR18J308SEM QMPR Pillow Block, 3.5 in Dia Bore, 9.25 to 11.25 in L Bolt Center-to-Center, 3.75 in Base to Bore Centerline, 13.63 in OAL x 7.69 in OAH
- CP#:
- Item#: QMPR18J308SEM
- Mfr#: QMPR18J308SEM
- UPC: 883450157469
- A reduced eccentric offset results in more mechanical advantage
- This series provides a secure lock that should not release from a properly prepared shaft even in reversing applications
- Medium Duty contact triple-lip seal, made of nitrile rubber, offers superior sealing in moist and dirty applications
- It is chemical and corrosion resistant and provides excellent lubrication retention
- It also allows excess grease to purge from the bearing cavity
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QMPR18J308SEM, Pillow Block, Series: QMPR, 3.5 in Bore, 9.25 to 11.25 in Bolt Center-to-Center Length, 3.75 in Base to Bore Centerline, 13.63 in Overall Length, 4.46 in Overall Width, 7.69 in Overall Height, 4-Bolt Mounting, Cylindrical Bore, 3.75 in Base Width, Eccentric Lock Locking Device, M Seal, Expansion, 79700 lb Dynamic/87200 lb Static Load, -50 to 200 deg F, 1400 rpm Grease/1400 rpm Oil Maximum, Steel, Painted
SPECIFICATIONS
| Base Width | : | 3.75 in |
| Base to Bore Centerline | : | 3.75 in |
| Series | : | QMPR |
| Bolt Center-to-Center Length | : | 9.25 to 11.25 in |
| Mounting Type | : | 4-Bolt |
| Expansion Type | : | Expansion |
| Locking Device | : | Eccentric Lock |
| Finish | : | Painted |
| Overall Length | : | 13.63 in |
| Load Capacity | : | 79700 lb Dynamic/87200 lb Static |
| Material | : | Steel |
| Maximum Speed | : | 1400 rpm Grease/1400 rpm Oil |
| Overall Width | : | 4.46 in |
| Inside Diameter | : | 3.5 in |
| Overall Height | : | 7.69 in |
| Measurement System | : | Imperial |
| Seal Type | : | M Seal |
