QMPL20J400SET

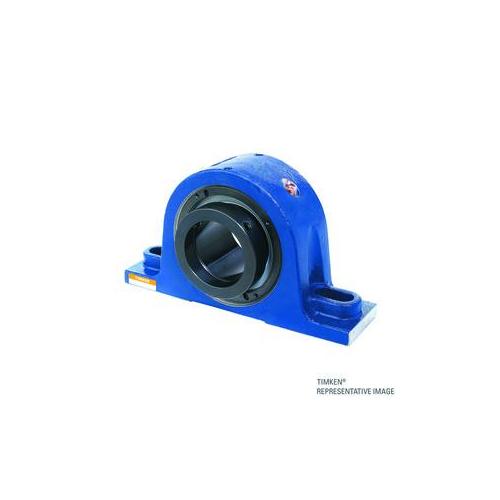

Timken® QMPL20J400SET QMPL Pillow Block, 4 in Dia Bore, 10.04 to 12.6 in L Bolt Center-to-Center, 4.25 in Base to Bore Centerline, 14.25 in OAL x 8.38 in OAH
- CP#:
- Item#: QMPL20J400SET
- Mfr#: QMPL20J400SET
- UPC: 883450089388
- A reduced eccentric offset results in more mechanical advantage
- This series provides a secure lock that should not release from a properly prepared shaft even in reversing applications
- Labyrinth seal consists of a Teflon ring pressed onto the inner ring of the bearing that floats between two pieces of formed steel to accommodate misalignment
- When using this seal, the housing comes with a vent fitting
- Developed for higher-speed applications involving dirty conditions or moisture-affected areas, is able to operate at higher temperatures and is impervious to most chemicals
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QMPL20J400SET, Pillow Block, Series: QMPL, 4 in Bore, 10.04 to 12.6 in Bolt Center-to-Center Length, 4.25 in Base to Bore Centerline, 14.25 in Overall Length, 4.84 in Overall Width, 8.38 in Overall Height, 2-Bolt Mounting, Cylindrical Bore, 3.73 in Base Width, Eccentric Lock Locking Device, T Seal, Expansion, 97700 lb Dynamic/113000 lb Static Load, -100 to 500 deg F, 1600 rpm Grease/2000 rpm Oil Maximum, Steel, Painted
SPECIFICATIONS
| Base Width | : | 3.73 in |
| Base to Bore Centerline | : | 4.25 in |
| Series | : | QMPL |
| Bolt Center-to-Center Length | : | 10.04 to 12.6 in |
| Mounting Type | : | 2-Bolt |
| Expansion Type | : | Expansion |
| Locking Device | : | Eccentric Lock |
| Finish | : | Painted |
| Overall Length | : | 14.25 in |
| Load Capacity | : | 97700 lb Dynamic/113000 lb Static |
| Material | : | Steel |
| Maximum Speed | : | 1600 rpm Grease/2000 rpm Oil |
| Overall Width | : | 4.84 in |
| Inside Diameter | : | 4 in |
| Overall Height | : | 8.38 in |
| Measurement System | : | Imperial |
| Seal Type | : | T Seal |
