QMP20J400ST

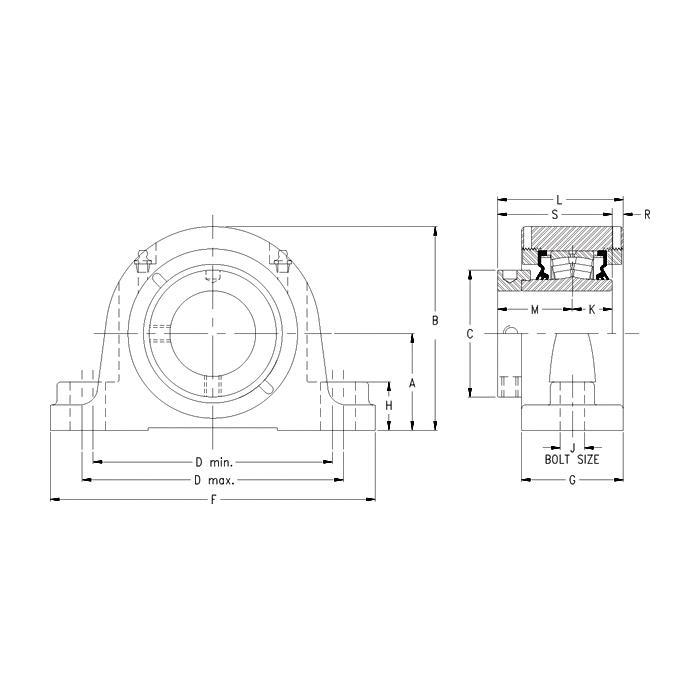

Timken® QMP20J400ST Pillow Block Spherical Roller Bearing Unit, 4 in Dia Bore, 10.04 to 12.6 in L Bolt Center-to-Center, 4.13 in Base to Bore Centerline, 14-1/4 in OAL x 8.26 in OAH
- CP#:
- Item#: QMP20J400ST
- Mfr#: QMP20J400ST
- UPC: 883450083201
- Reduced eccentric offset locking collar results in a secure shaft lock that is designed not to release from a properly prepared shaft
- Suitable for reversing applications
- Bearing steel
- Open end type
- Double row bearing
- 22220 bearing insert bore series
- Increased shaft holding power
- Reduced shaft damage under extreme shock loads
- Designed not to release in reversing applications
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Timken® solid block mounted spherical roller bearings (housed units) feature high-performance, low operating temperature Timken® double row spherical roller bearings, cast steel housings, unique locking and sealing design options to offer protection against contaminants in the harshest environments. Timken® spherical roller bearings are ideal for handling high radial loads.
Timken®, QMP20J400ST, Pillow Block Spherical Roller Bearing Unit, 4 in Bore, 10.04 to 12.6 in Bolt Center-to-Center Length, 4.13 in Base to Bore Centerline, 14-1/4 in Overall Length, 4.84 in Overall Width, 8.26 in Overall Height, Two-Bolt Base Mounting, Cylindrical Bore, 3.73 in Base Width, Eccentric Locking Device, Non-Expansion (Fixed), 97700 lb Dynamic/113000 lb Static Load, 1600 rpm Grease/2000 rpm Oil Maximum, Cast Steel, Powder Coated
SPECIFICATIONS
| Base Width | : | 3.73 in |
| Base to Bore Centerline | : | 4.13 in |
| Bolt Center-to-Center Length | : | 10.04 to 12.6 in |
| Mounting Type | : | Two-Bolt Base |
| Expansion Type | : | Non-Expansion (Fixed) |
| Locking Device | : | Eccentric |
| Finish | : | Powder Coated |
| Overall Length | : | 14-1/4 in |
| Load Capacity | : | 97700 lb Dynamic/113000 lb Static |
| Material | : | Cast Steel |
| Maximum Speed | : | 1600 rpm Grease/2000 rpm Oil |
| Overall Width | : | 4.84 in |
| Inside Diameter | : | 4 in |
| Overall Height | : | 8.26 in |
| Measurement System | : | Imperial |
| Seal Type | : | Labyrinth T |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_DVP10K111SM_Catalog.pdf
