Timken® QMMC15J300SEO
Timken®

Timken® QMMC15J300SEO

loading
Timken® QMMC15J300SEO
Timken®
Email Print

QMMC15J300SEO

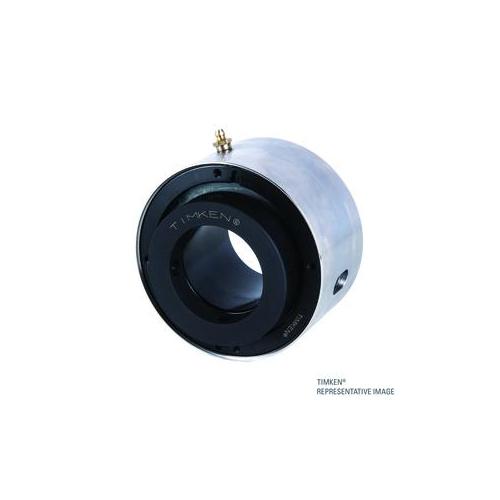

Timken® QMMC15J300SEO QMMC Eccentric Cartridge Block, 3 in Dia Bore, 5.875 in Dia Outside, 3.94 in W, Steel Bearing

  • Item#: QMMC15J300SEO-P01
  • Mfr#: QMMC15J300SEO
  • UPC: 883450260220
    • A reduced eccentric offset results in more mechanical advantage
    • This series provides a secure lock that should not release from a properly prepared shaft even in reversing applications
    • Medium Duty contact triple-lip seal made of high-strength urethane for superior abrasion resistance
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.

Timken®, QMMC15J300SEO, Cartridge Block, Eccentric, Series: QMMC, 3 in Bore, 5.875 in OD, 3.94 in Width, 222000 N Dynamic/240000 N Static Load, Steel Bearing, Polyurethane Seal, 1300 rpm Grease/1300 rpm Oil Maximum, -40 to 260 deg F, Painted

SPECIFICATIONS

Series      :      QMMC
Bearing Material      :      Steel
Finish      :      Painted
Load Capacity      :      222000 N Dynamic/240000 N Static
Maximum Speed      :      1300 rpm Grease/1300 rpm Oil
Outside Diameter      :      5.875 in
Seal Material      :      Polyurethane
Width      :      3.94 in
