QMFY15J215SM

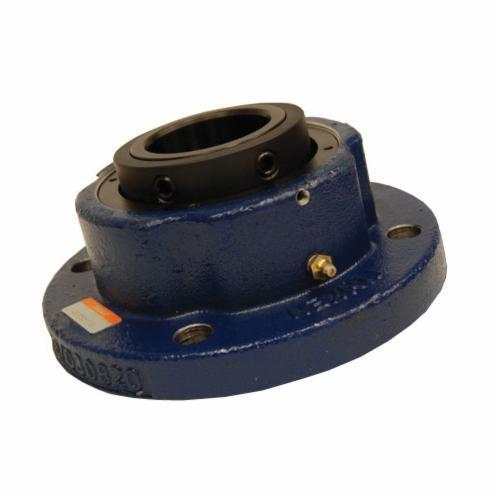

Timken® QMFY15J215SM EC Series Non-Expansion M Seal Solid Block Spherical Roller Bearing Housed Unit, 2-15/16 in Dia Bore, 5.56 in L Bolt Center-to-Center, 7.87 in Dia Bolt Circle, 4-Bolt Round Flange Mount, 9-1/2 in OAL/Dia
- CP#:
- Item#: QMFY15J215SM
- Mfr#: QMFY15J215SM
- UPC: 883450163705
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
The reduced eccentric offset of our EC series locking collar results in a secure shaft lock that is designed not to release from a properly prepared shaft. EC series housed units also are suitable for reversing applications.
Timken®, QMFY15J215SM, Spherical Roller Bearing Housed Unit, Non-Expansion M Seal Solid Block, Series: EC Series, 2-15/16 in Bore, 5.56 in Bolt Center-to-Center Length, 7.87 in Diameter Bolt Circle, 4-Bolt Round Flange Mounting, 9-1/2 in Overall Length/Diameter, 3.88 in Overall Depth, 9-1/2 in Overall Height, Eccentric Locking Device, Cast Steel Seal, 49900 lb Dynamic/54100 lb Static Load, 1600 rpm Grease/Oil Maximum
SPECIFICATIONS
| Bolt Center-to-Center Length | : | 5.56 in |
| Series | : | EC Series |
| Bolt Circle Diameter | : | 7.87 in |
| Bearing Material | : | Steel |
| Flange Mounting Type | : | 4-Bolt Round |
| Locking Device | : | Eccentric |
| Load Capacity | : | 49900 lb Dynamic/54100 lb Static |
| Maximum Speed | : | 1600 rpm Grease/Oil |
| Overall Depth | : | 3.88 in |
| Overall Height | : | 9-1/2 in |
| Inside Diameter | : | 2-15/16 in |
| Overall Length/Diameter | : | 9-1/2 in |
| Seal Material | : | Cast Steel |
| Measurement System | : | Imperial |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_Belts_CS08_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_Belts_QMFY15J215ST_Specification_Sheet.pdf
