QMFY13J207SM

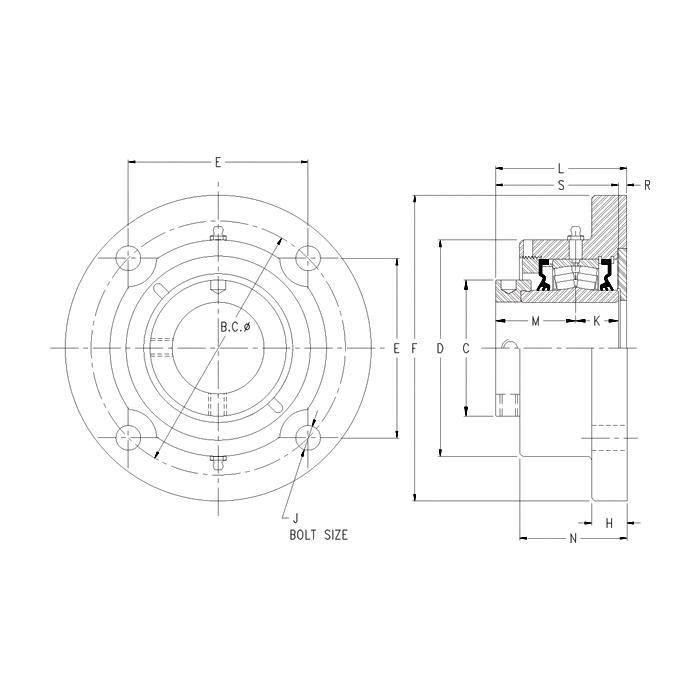

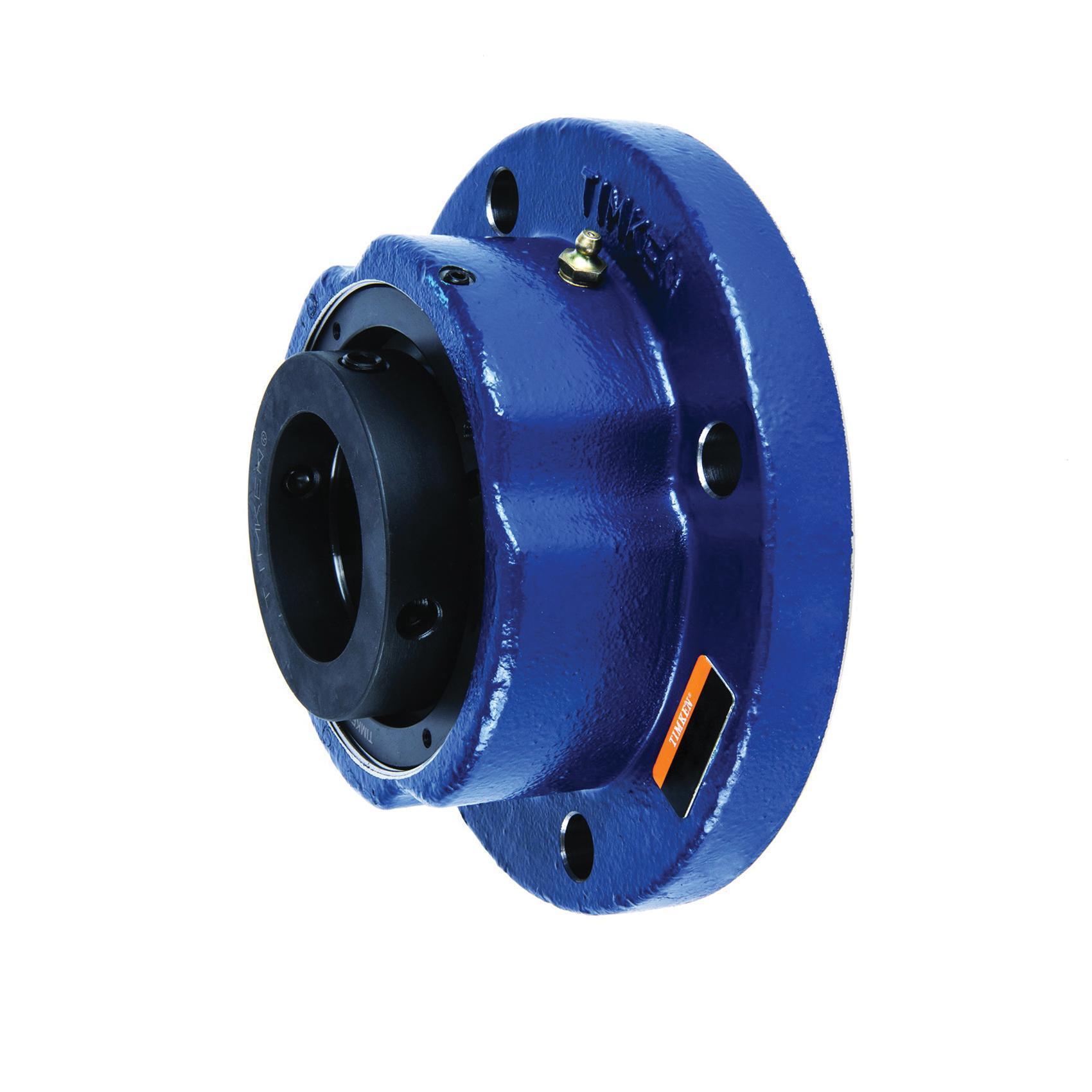

Timken® QMFY13J207SM Heavy Duty Non-Expansion Cylindrical Bore Spherical Roller Bearing Unit, 2-7/16 in Dia Bore, 4.77 in L Bolt Center-to-Center, 6-3/4 in Dia Bolt Circle, 4-Bolt Round Flange Mount, 8.13 in OAL/Dia
- CP#:
- Item#: QMFY13J207SM
- Mfr#: QMFY13J207SM
- UPC: 883450163644
- Reduced eccentric offset locking collar results in a secure shaft lock that is designed not to release from a properly prepared shaft
- Suitable for reversing applications
- Triple-lip contacting, self-purging nitrile rubber seal is excellent in moist and dirty applications, chemical and corrosion resistant
- Double row bearing
- Cast steel housing
- Open end type
- Solid block housing
- Do not operate at bearing temperatures above 250 deg F
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Timken® solid block mounted spherical roller bearings (housed units) feature high-performance, low operating temperature Timken® double row spherical roller bearings, cast steel housings, unique locking and sealing design options to offer protection against contaminants in the harshest environments. Timken® spherical roller bearings are ideal for handling high radial loads.
Timken®, QMFY13J207SM, Spherical Roller Bearing Unit, Heavy Duty Non-Expansion Cylindrical Bore, 2-7/16 in Bore, 4.77 in Bolt Center-to-Center Length, 6-3/4 in Diameter Bolt Circle, 4-Bolt Round Flange Mounting, 8.13 in Overall Length/Diameter, 3.47 in Overall Depth, Eccentric Locking Device, Steel Bearing, Nitrile Rubber Seal, 46400 lb Dynamic/48600 lb Static Load, 1800 rpm Maximum, -40 to 250 deg F, Powder Coated
SPECIFICATIONS
| Bolt Center-to-Center Length | : | 4.77 in |
| Bolt Circle Diameter | : | 6-3/4 in |
| Bearing Material | : | Steel |
| Finish | : | Powder Coated |
| Flange Mounting Type | : | 4-Bolt Round |
| Locking Device | : | Eccentric |
| Load Capacity | : | 46400 lb Dynamic/48600 lb Static |
| Maximum Speed | : | 1800 rpm |
| Overall Depth | : | 3.47 in |
| Inside Diameter | : | 2-7/16 in |
| Overall Length/Diameter | : | 8.13 in |
| Seal Material | : | Nitrile Rubber |
| Measurement System | : | Imperial |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_DVC13K203SM_Catalog.pdf
