QMF15J212SM

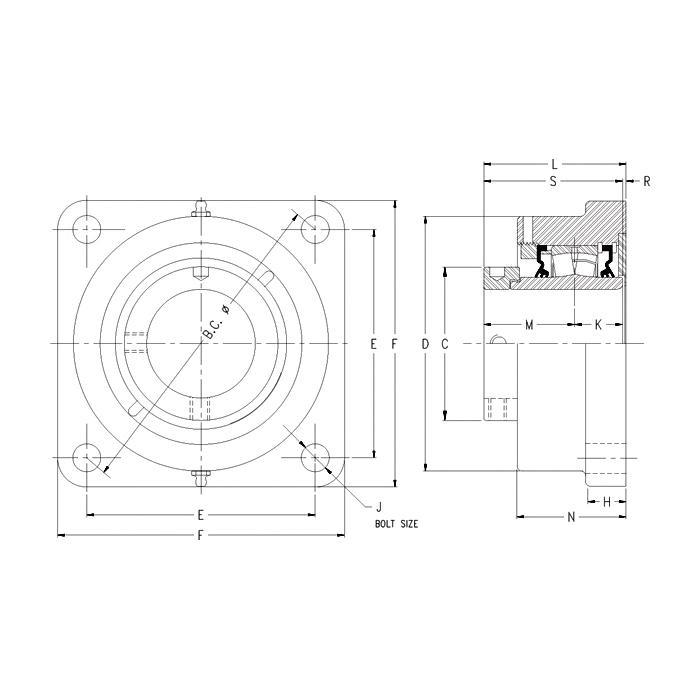

Timken® QMF15J212SM Heavy Duty Non-Expansion Cylindrical Bore Spherical Roller Bearing Unit, 2-3/4 in Dia Bore, 6 in L Bolt Center-to-Center, 8.49 in Dia Bolt Circle, 4-Bolt Square Flange Mount, 7.44 in OAL/Dia
- CP#:
- Item#: QMF15J212SM
- Mfr#: QMF15J212SM
- UPC: 883450161640
- Reduced eccentric offset locking collar results in a secure shaft lock that is designed not to release from a properly prepared shaft
- Suitable for reversing applications
- Triple-lip contacting, self-purging nitrile rubber seal is excellent in moist and dirty applications, chemical and corrosion resistant
- Double row bearing
- Cast steel housing
- Open end type
- Solid block housing
- Do not operate at bearing temperatures above 250 deg F
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Timken® solid block mounted spherical roller bearings (housed units) feature high-performance, low operating temperature Timken® double row spherical roller bearings, cast steel housings, unique locking and sealing design options to offer protection against contaminants in the harshest environments. Timken® spherical roller bearings are ideal for handling high radial loads.
Timken®, QMF15J212SM, Spherical Roller Bearing Unit, Heavy Duty Non-Expansion Cylindrical Bore, 2-3/4 in Bore, 6 in Bolt Center-to-Center Length, 8.49 in Diameter Bolt Circle, 4-Bolt Square Flange Mounting, 7.44 in Overall Length/Diameter, 3.78 in Overall Depth, 7.44 in Overall Height, Eccentric Locking Device, Steel Bearing, Nitrile Rubber Seal, 49900 lb Dynamic/54100 lb Static Load, 1600 rpm Maximum, -40 to 250 deg F, Powder Coated
SPECIFICATIONS
| Bolt Center-to-Center Length | : | 6 in |
| Bolt Circle Diameter | : | 8.49 in |
| Bearing Material | : | Steel |
| Finish | : | Powder Coated |
| Flange Mounting Type | : | 4-Bolt Square |
| Locking Device | : | Eccentric |
| Load Capacity | : | 49900 lb Dynamic/54100 lb Static |
| Maximum Speed | : | 1600 rpm |
| Overall Depth | : | 3.78 in |
| Overall Height | : | 7.44 in |
| Inside Diameter | : | 2-3/4 in |
| Overall Length/Diameter | : | 7.44 in |
| Seal Material | : | Nitrile Rubber |
| Measurement System | : | Imperial |
