QMF09J111SEM

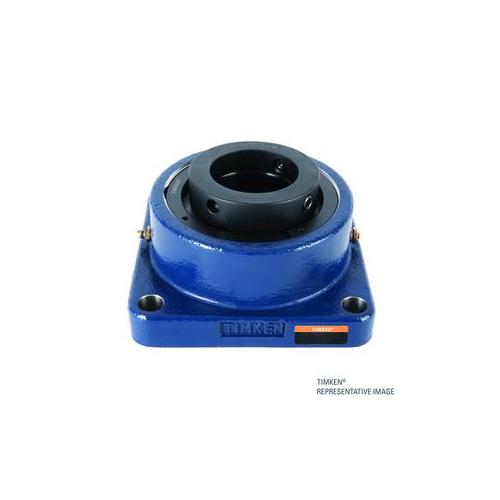

Timken® QMF09J111SEM QMF Square Flange Block, 1.6875 in Dia Bore, 4.13 in L Bolt Center-to-Center, 5.84 in Dia Bolt Circle, 4-Bolt Square Flange Mount, 5.38 in OAL/Dia
- CP#:
- Item#: QMF09J111SEM
- Mfr#: QMF09J111SEM
- UPC: 883450162210
- A reduced eccentric offset results in more mechanical advantage
- This series provides a secure lock that should not release from a properly prepared shaft even in reversing applications
- Medium Duty contact triple-lip seal, made of nitrile rubber, offers superior sealing in moist and dirty applications
- It is chemical and corrosion resistant and provides excellent lubrication retention
- It also allows excess grease to purge from the bearing cavity
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QMF09J111SEM, Square Flange Block, Series: QMF, 1.6875 in Bore, 4.13 in Bolt Center-to-Center Length, 5.84 in Diameter Bolt Circle, 4-Bolt Square Flange Mounting, 5.38 in Overall Length/Diameter, 3.13 in Overall Depth, 5.38 in Overall Height, Eccentric Locking Device, Steel Bearing, Nitrile Rubber Seal, 109000 N Dynamic/108000 N Static Load, 2700 rpm Grease/2700 rpm Oil Maximum, -50 to 200 deg F, Painted
SPECIFICATIONS
| Bolt Center-to-Center Length | : | 4.13 in |
| Series | : | QMF |
| Bolt Circle Diameter | : | 5.84 in |
| Bearing Material | : | Steel |
| Finish | : | Painted |
| Flange Mounting Type | : | 4-Bolt Square |
| Locking Device | : | Eccentric |
| Load Capacity | : | 109000 N Dynamic/108000 N Static |
| Maximum Speed | : | 2700 rpm Grease/2700 rpm Oil |
| Overall Depth | : | 3.13 in |
| Overall Height | : | 5.38 in |
| Inside Diameter | : | 1.6875 in |
| Overall Length/Diameter | : | 5.38 in |
| Seal Material | : | Nitrile Rubber |
| Measurement System | : | Imperial |
