QMCW34J607ST

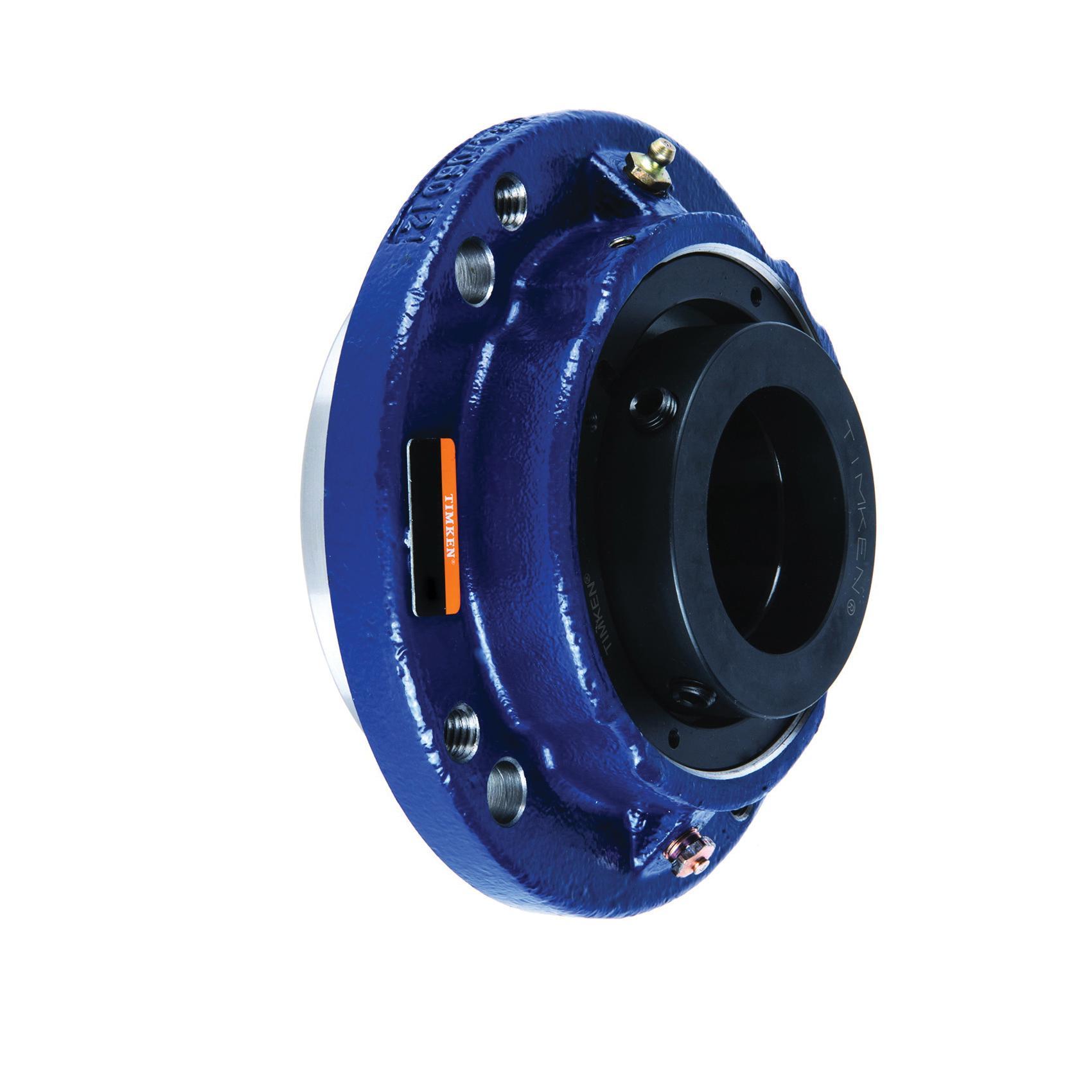

Timken® QMCW34J607ST Heavy Duty Non-Expansion Cylindrical Bore Spherical Roller Bearing Unit, 6-7/16 in Dia Bore, 8-1/2 in L Bolt Center-to-Center, 17 in Dia Bolt Circle, 6-Bolt Piloted Flange Mount, 19 in OAL/Dia
- CP#:
- Item#: QMCW34J607ST
- Mfr#: QMCW34J607ST
- UPC: 883450382588
- Reduced eccentric offset locking collar results in a secure shaft lock that is designed not to release from a properly prepared shaft
- Suitable for reversing applications
- Double row bearing
- Cast steel housing
- Open end type
- Solid block housing
- Do not operate at bearing temperatures above 250 deg F
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Timken® solid block mounted spherical roller bearings (housed units) feature high-performance, low operating temperature Timken® double row spherical roller bearings, cast steel housings, unique locking and sealing design options to offer protection against contaminants in the harshest environments. Timken® spherical roller bearings are ideal for handling high radial loads.
Timken®, QMCW34J607ST, Spherical Roller Bearing Unit, Heavy Duty Non-Expansion Cylindrical Bore, 6-7/16 in Bore, 8-1/2 in Bolt Center-to-Center Length, 17 in Diameter Bolt Circle, 6-Bolt Piloted Flange Mounting, 19 in Overall Length/Diameter, 8.51 in Overall Depth, Eccentric Locking Device, Steel Bearing, DuPont® Teflon® Seal, 373000 lb Dynamic/494000 lb Static Load, 800 rpm Grease/900 rpm Oil Maximum, -40 to 250 deg F, Powder Coated
SPECIFICATIONS
| Bolt Center-to-Center Length | : | 8-1/2 in |
| Bolt Circle Diameter | : | 17 in |
| Bearing Material | : | Steel |
| Finish | : | Powder Coated |
| Flange Mounting Type | : | 6-Bolt Piloted |
| Locking Device | : | Eccentric |
| Load Capacity | : | 373000 lb Dynamic/494000 lb Static |
| Maximum Speed | : | 800 rpm Grease/900 rpm Oil |
| Overall Depth | : | 8.51 in |
| Inside Diameter | : | 6-7/16 in |
| Overall Length/Diameter | : | 19 in |
| Seal Material | : | DuPont® Teflon® |
| Measurement System | : | Imperial |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_DVC13K203SM_Catalog.pdf
