QMC10J200SB

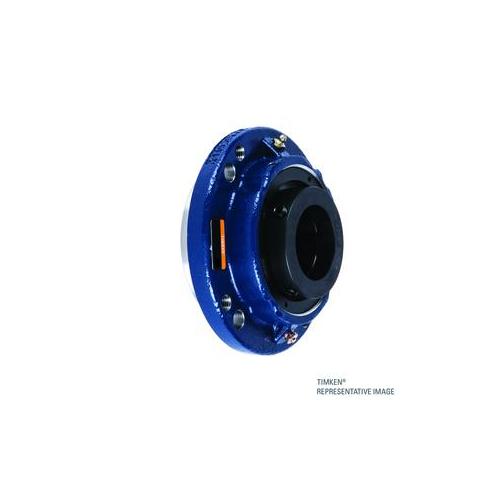

Timken® QMC10J200SB QMC Piloted Flange Cartridge, 2 in Dia Bore, 3.8 in L Bolt Center-to-Center, 5.38 in Dia Bolt Circle, Piloted Flange Mount, 6.38 in OAL/Dia
- CP#:
- Item#: QMC10J200SB
- Mfr#: QMC10J200SB
- UPC: 883450058827
- A reduced eccentric offset results in more mechanical advantage
- This series provides a secure lock that should not release from a properly prepared shaft even in reversing applications
- Double-lip seal with garter spring for maximum contact, and a heavy-duty steel shield that protects the seal from large pieces of debris that could damage the seal itself
- Made from nitrile rubber and designed for extreme moisture, fine dust or extremely dirty applications
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QMC10J200SB, Piloted Flange Cartridge, Series: QMC, 2 in Bore, 3.8 in Bolt Center-to-Center Length, 5.38 in Diameter Bolt Circle, Piloted Flange Mounting, 6.38 in Overall Length/Diameter, 3.05 in Overall Depth, Eccentric Locking Device, Steel Bearing, Nitrile Rubber Seal, 117000 N Dynamic/118000 N Static Load, 1800 rpm Grease/1800 rpm Oil Maximum, -50 to 200 deg F, Painted
SPECIFICATIONS
| Bolt Center-to-Center Length | : | 3.8 in |
| Series | : | QMC |
| Bolt Circle Diameter | : | 5.38 in |
| Bearing Material | : | Steel |
| Finish | : | Painted |
| Flange Mounting Type | : | Piloted |
| Locking Device | : | Eccentric |
| Load Capacity | : | 117000 N Dynamic/118000 N Static |
| Maximum Speed | : | 1800 rpm Grease/1800 rpm Oil |
| Overall Depth | : | 3.05 in |
| Inside Diameter | : | 2 in |
| Overall Length/Diameter | : | 6.38 in |
| Seal Material | : | Nitrile Rubber |
| Measurement System | : | Imperial |
