QASN13A060SEM

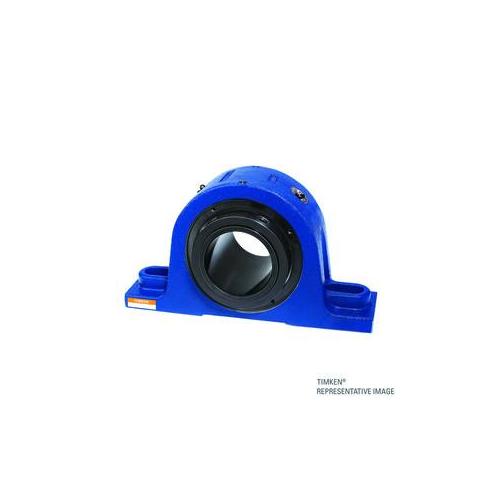

Timken® QASN13A060SEM QASN Pillow Block, 2.3622 in Dia Bore, 7.72 to 9.25 in L Bolt Center-to-Center, 3.15 in Base to Bore Centerline, 10.83 in OAL x 6.18 in OAH
- CP#:
- Item#: QASN13A060SEM
- Mfr#: QASN13A060SEM
- UPC: 883450353489
- Single Collar set-screw locking - CL Series - Two set screws positioned at 60 deg provide maximum positive locking power with minimal run out
- Medium Duty contact triple-lip seal, made of nitrile rubber, offers superior sealing in moist and dirty applications
- It is chemical and corrosion resistant and provides excellent lubrication retention
- It also allows excess grease to purge from the bearing cavity
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QASN13A060SEM, Pillow Block, Series: QASN, 2.3622 in Bore, 7.72 to 9.25 in Bolt Center-to-Center Length, 3.15 in Base to Bore Centerline, 10.83 in Overall Length, 3.62 in Overall Width, 6.18 in Overall Height, 2-Bolt Mounting, Cylindrical Bore, 2.91 in Base Width, Single Concentric Collar Locking Device, M Seal, Expansion, 206000 N Dynamic/216000 N Static Load, -50 to 200 deg F, 1800 rpm Grease/1800 rpm Oil Maximum, Steel, Painted
SPECIFICATIONS
| Base Width | : | 2.91 in |
| Base to Bore Centerline | : | 3.15 in |
| Series | : | QASN |
| Bolt Center-to-Center Length | : | 7.72 to 9.25 in |
| Mounting Type | : | 2-Bolt |
| Expansion Type | : | Expansion |
| Locking Device | : | Single Concentric Collar |
| Finish | : | Painted |
| Overall Length | : | 10.83 in |
| Load Capacity | : | 206000 N Dynamic/216000 N Static |
| Material | : | Steel |
| Maximum Speed | : | 1800 rpm Grease/1800 rpm Oil |
| Overall Width | : | 3.62 in |
| Inside Diameter | : | 2.3622 in |
| Overall Height | : | 6.18 in |
| Measurement System | : | Imperial |
| Seal Type | : | M Seal |
