QAPR15A211ST

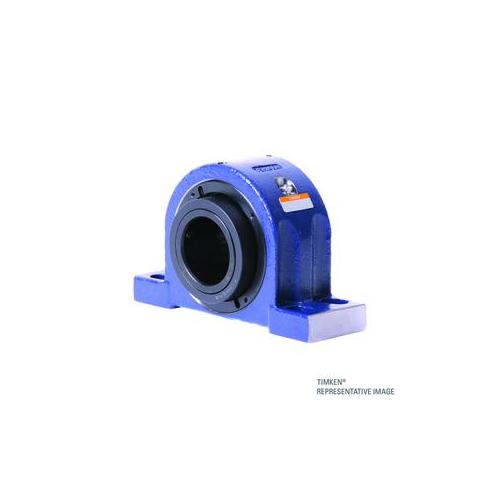

Timken® QAPR15A211ST QAPR Pillow Block, 2.6875 in Dia Bore, 8 to 9.6 in L Bolt Center-to-Center, 3.13 in Base to Bore Centerline, 10.83 in OAL x 6.47 in OAH
- CP#:
- Item#: QAPR15A211ST
- Mfr#: QAPR15A211ST
- UPC: 883450300100
- Single Collar set-screw locking - CL Series - Two set screws positioned at 60 deg provide maximum positive locking power with minimal run out
- Labyrinth seal consists of a Teflon ring pressed onto the inner ring of the bearing that floats between two pieces of formed steel to accommodate misalignment
- When using this seal, the housing comes with a vent fitting
- Developed for higher-speed applications involving dirty conditions or moisture-affected areas, is able to operate at higher temperatures and is impervious to most chemicals
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QAPR15A211ST, Pillow Block, Series: QAPR, 2.6875 in Bore, 8 to 9.6 in Bolt Center-to-Center Length, 3.13 in Base to Bore Centerline, 10.83 in Overall Length, 4.02 in Overall Width, 6.47 in Overall Height, 4-Bolt Mounting, Cylindrical Bore, 3.38 in Base Width, Single Concentric Collar Locking Device, T Seal, Fixed Expansion, 222000 N Dynamic/240000 N Static Load, -100 to 500 deg F, 2400 rpm Grease/2900 rpm Oil Maximum, Steel, Painted
SPECIFICATIONS
| Base Width | : | 3.38 in |
| Base to Bore Centerline | : | 3.13 in |
| Series | : | QAPR |
| Bolt Center-to-Center Length | : | 8 to 9.6 in |
| Mounting Type | : | 4-Bolt |
| Expansion Type | : | Fixed |
| Locking Device | : | Single Concentric Collar |
| Finish | : | Painted |
| Overall Length | : | 10.83 in |
| Load Capacity | : | 222000 N Dynamic/240000 N Static |
| Material | : | Steel |
| Maximum Speed | : | 2400 rpm Grease/2900 rpm Oil |
| Overall Width | : | 4.02 in |
| Inside Diameter | : | 2.6875 in |
| Overall Height | : | 6.47 in |
| Measurement System | : | Imperial |
| Seal Type | : | T Seal |
