QAPL09A112ST

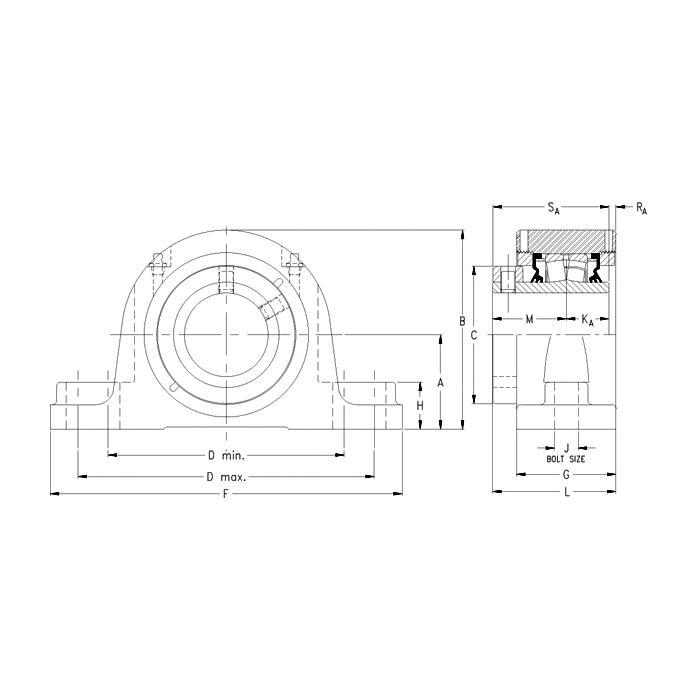

Timken® QAPL09A112ST Pillow Block Spherical Roller Bearing Unit, 1-3/4 in Dia Bore, 5-1/4 to 5-3/4 in L Bolt Center-to-Center, 2.13 in Base to Bore Centerline, 7.13 in OAL x 4.13 in OAH
- CP#:
- Item#: QAPL09A112ST
- Mfr#: QAPL09A112ST
- UPC: 883450964135
- Concentric locking collar with two set screws at 60 degrees to provide maximum positive locking power with minimal run out
- Double collared insert provides double the holding power compared to our standard single collared insert
- Bearing steel
- Open end type
- Double row bearing
- 22209 bearing insert bore series
- Simple installation
- Minimal runout
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Timken® solid block mounted spherical roller bearings (housed units) feature high-performance, low operating temperature Timken® double row spherical roller bearings, cast steel housings, unique locking and sealing design options to offer protection against contaminants in the harshest environments. Timken® spherical roller bearings are ideal for handling high radial loads.
Timken®, QAPL09A112ST, Pillow Block Spherical Roller Bearing Unit, 1-3/4 in Bore, 5-1/4 to 5-3/4 in Bolt Center-to-Center Length, 2.13 in Base to Bore Centerline, 7.13 in Overall Length, 3.07 in Overall Width, 4.13 in Overall Height, Two-Bolt Base Mounting, Cylindrical Bore, 2.37 in Base Width, Single Concentric Collar Locking Device, Non-Expansion (Fixed), 24500 lb Dynamic/24200 lb Static Load, 4000 rpm Grease/4500 rpm Oil Maximum, Cast Steel, Powder Coated
SPECIFICATIONS
| Base Width | : | 2.37 in |
| Base to Bore Centerline | : | 2.13 in |
| Bolt Center-to-Center Length | : | 5-1/4 to 5-3/4 in |
| Mounting Type | : | Two-Bolt Base |
| Expansion Type | : | Non-Expansion (Fixed) |
| Locking Device | : | Single Concentric Collar |
| Finish | : | Powder Coated |
| Overall Length | : | 7.13 in |
| Load Capacity | : | 24500 lb Dynamic/24200 lb Static |
| Material | : | Cast Steel |
| Maximum Speed | : | 4000 rpm Grease/4500 rpm Oil |
| Overall Width | : | 3.07 in |
| Inside Diameter | : | 1-3/4 in |
| Overall Height | : | 4.13 in |
| Measurement System | : | Imperial |
| Seal Type | : | Labyrinth T |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_DVP10K111SM_Catalog.pdf
