QAP13A208SM

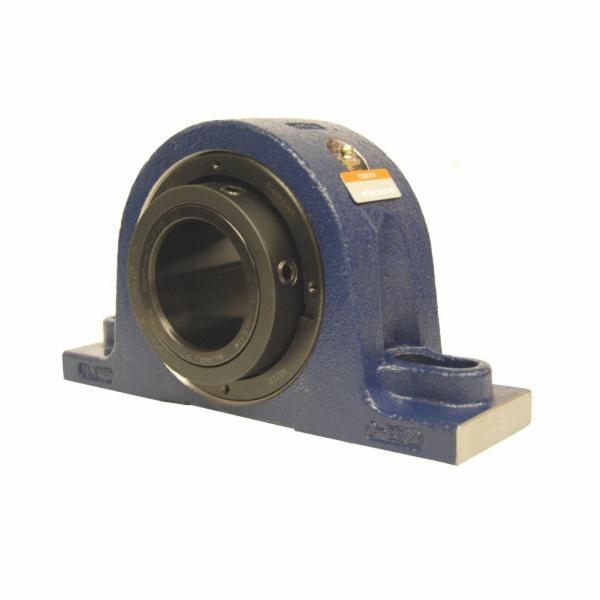

Timken® QAP13A208SM CL Series Solid Block Type E Spherical Roller Bearing Housed Unit, 2-1/2 in Dia Bore, 6.88 to 8.63 in L Bolt Center-to-Center, 2-3/4 in Base to Bore Centerline, 10-1/4 in OAL x 5.8 in OAH
- CP#:
- Item#: QAP13A208SM
- Mfr#: QAP13A208SM
- UPC: 883450187886
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Timken®, QAP13A208SM, Spherical Roller Bearing Housed Unit, Solid Block Type E, Series: CL Series, 2-1/2 in Bore, 6.88 to 8.63 in Bolt Center-to-Center Length, 2-3/4 in Base to Bore Centerline, 10-1/4 in Overall Length, 3.6 in Overall Width, 5.8 in Overall Height, Two-Bolt Base Mounting, Cylindrical Bore, 2.9 in Base Width, Single Concentric Collar Locking Device, M Seal, Non-Expansion (Fixed), 46400 lb Dynamic/48600 lb Static Load, 1800 rpm Grease/Oil Maximum, Cast Steel
SPECIFICATIONS
| Base Width | : | 2.9 in |
| Base to Bore Centerline | : | 2-3/4 in |
| Series | : | CL Series |
| Bolt Center-to-Center Length | : | 6.88 to 8.63 in |
| Mounting Type | : | Two-Bolt Base |
| Expansion Type | : | Non-Expansion (Fixed) |
| Locking Device | : | Single Concentric Collar |
| Overall Length | : | 10-1/4 in |
| Load Capacity | : | 46400 lb Dynamic/48600 lb Static |
| Material | : | Cast Steel |
| Maximum Speed | : | 1800 rpm Grease/Oil |
| Overall Width | : | 3.6 in |
| Inside Diameter | : | 2-1/2 in |
| Overall Height | : | 5.8 in |
| Measurement System | : | Imperial |
| Seal Type | : | M Seal |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_Belts_CS08_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_Belts_QAP13A208SM_Specification_Sheet.pdf
