QAF18A080SB

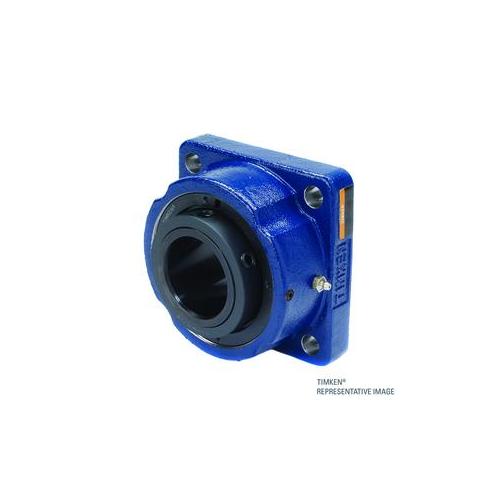

Timken® QAF18A080SB QAF Four-Bolt Square Flange Block, 3.1496 in Dia Bore, 7 in L Bolt Center-to-Center, 9.91 in Dia Bolt Circle, 4-Bolt Square Flange Mount, 8.63 in OAL/Dia
- CP#:
- Item#: QAF18A080SB
- Mfr#: QAF18A080SB
- UPC: 883450325745
- Single Collar set-screw locking - CL Series - Two set screws positioned at 60 deg provide maximum positive locking power with minimal run out
- Double-lip seal with garter spring for maximum contact and a heavy-duty steel shield that protects the seal from large pieces of debris that could damage the seal itself
- Made from nitrile rubber and designed for extreme moisture, fine dust or extremely dirty applications
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QAF18A080SB, Square Flange Block, Four-Bolt, Series: QAF, 3.1496 in Bore, 7 in Bolt Center-to-Center Length, 9.91 in Diameter Bolt Circle, 4-Bolt Square Flange Mounting, 8.63 in Overall Length/Diameter, 4.03 in Overall Depth, 8.63 in Overall Height, Single Concentric Locking Device, Steel Bearing, Nitrile Rubber Seal, 355000 N Dynamic/388000 N Static Load, 1000 rpm Grease/1000 rpm Oil Maximum, -50 to 200 deg F, Painted
SPECIFICATIONS
| Bolt Center-to-Center Length | : | 7 in |
| Series | : | QAF |
| Bolt Circle Diameter | : | 9.91 in |
| Bearing Material | : | Steel |
| Finish | : | Painted |
| Flange Mounting Type | : | 4-Bolt Square |
| Locking Device | : | Single Concentric |
| Load Capacity | : | 355000 N Dynamic/388000 N Static |
| Maximum Speed | : | 1000 rpm Grease/1000 rpm Oil |
| Overall Depth | : | 4.03 in |
| Overall Height | : | 8.63 in |
| Inside Diameter | : | 3.1496 in |
| Overall Length/Diameter | : | 8.63 in |
| Seal Material | : | Nitrile Rubber |
| Measurement System | : | Imperial |
