QAF10A115ST

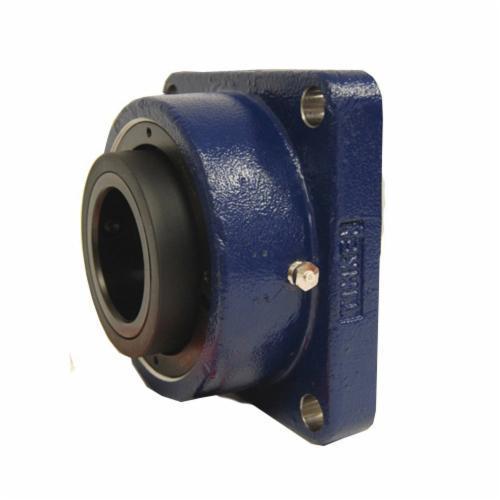

Timken® QAF10A115ST CL Series Non-Expansion T Seal Solid Block Spherical Roller Bearing Housed Unit, 1-15/16 in Dia Bore, 4.38 in L Bolt Center-to-Center, 6.19 in Dia Bolt Circle, 4-Bolt Square Flange Mount, 5-1/2 in OAL/Dia
- CP#:
- Item#: QAF10A115ST
- Mfr#: QAF10A115ST
- UPC: 883450037983
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Available in single-collar (QA) versions, the CL bearing series features a concentric locking collar with two set screws at 60 deg to provide maximum positive locking power with minimal run out.
Timken®, QAF10A115ST, Spherical Roller Bearing Housed Unit, Non-Expansion T Seal Solid Block, Series: CL Series, 1-15/16 in Bore, 4.38 in Bolt Center-to-Center Length, 6.19 in Diameter Bolt Circle, 4-Bolt Square Flange Mounting, 5-1/2 in Overall Length/Diameter, 3.18 in Overall Depth, 5-1/2 in Overall Height, Single Concentric Collar Locking Device, Cast Steel Seal, 26300 lb Dynamic/26600 lb Static Load, 3550 rpm Grease/4200 rpm Oil Maximum
SPECIFICATIONS
| Bolt Center-to-Center Length | : | 4.38 in |
| Series | : | CL Series |
| Bolt Circle Diameter | : | 6.19 in |
| Bearing Material | : | Steel |
| Flange Mounting Type | : | 4-Bolt Square |
| Locking Device | : | Single Concentric Collar |
| Load Capacity | : | 26300 lb Dynamic/26600 lb Static |
| Maximum Speed | : | 3550 rpm Grease/4200 rpm Oil |
| Overall Depth | : | 3.18 in |
| Overall Height | : | 5-1/2 in |
| Inside Diameter | : | 1-15/16 in |
| Overall Length/Diameter | : | 5-1/2 in |
| Seal Material | : | Cast Steel |
| Measurement System | : | Imperial |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_Belts_CS08_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_Belts_QAF10A115ST_Specification_Sheet.pdf
