QAF09A112SM

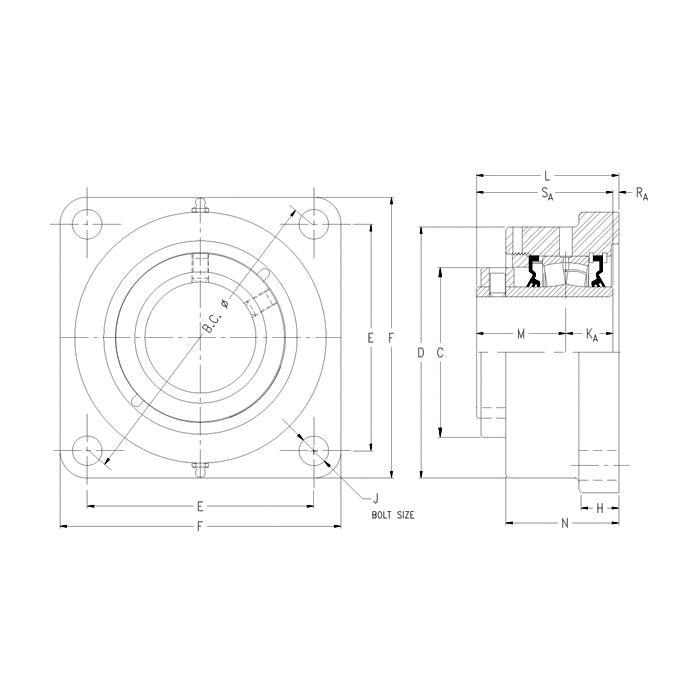

Timken® QAF09A112SM Heavy Duty Non-Expansion Cylindrical Bore Spherical Roller Bearing Unit, 1-3/4 in Dia Bore, 4.38 in L Bolt Center-to-Center, 6.19 in Dia Bolt Circle, 4-Bolt Square Flange Mount, 5.38 in OAL/Dia
- CP#:
- Item#: QAF09A112SM
- Mfr#: QAF09A112SM
- UPC: 883450966078
- Concentric locking collar with two set screws at 60 degrees to provide maximum positive locking power with minimal run out
- Triple-lip contacting, self-purging nitrile rubber seal is excellent in moist and dirty applications, chemical and corrosion resistant
- Double row bearing
- Cast steel housing
- Open end type
- Solid block housing
- Do not operate at bearing temperatures above 250 deg F
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Timken® solid block mounted spherical roller bearings (housed units) feature high-performance, low operating temperature Timken® double row spherical roller bearings, cast steel housings, unique locking and sealing design options to offer protection against contaminants in the harshest environments. Timken® spherical roller bearings are ideal for handling high radial loads.
Timken®, QAF09A112SM, Spherical Roller Bearing Unit, Heavy Duty Non-Expansion Cylindrical Bore, 1-3/4 in Bore, 4.38 in Bolt Center-to-Center Length, 6.19 in Diameter Bolt Circle, 4-Bolt Square Flange Mounting, 5.38 in Overall Length/Diameter, 3.13 in Overall Depth, 5.63 in Overall Height, Single Concentric Collar Locking Device, Steel Bearing, Nitrile Rubber Seal, 24500 lb Dynamic/24200 lb Static Load, 2700 rpm Maximum, -40 to 250 deg F, Powder Coated
SPECIFICATIONS
| Bolt Center-to-Center Length | : | 4.38 in |
| Bolt Circle Diameter | : | 6.19 in |
| Bearing Material | : | Steel |
| Finish | : | Powder Coated |
| Flange Mounting Type | : | 4-Bolt Square |
| Locking Device | : | Single Concentric Collar |
| Load Capacity | : | 24500 lb Dynamic/24200 lb Static |
| Maximum Speed | : | 2700 rpm |
| Overall Depth | : | 3.13 in |
| Overall Height | : | 5.63 in |
| Inside Diameter | : | 1-3/4 in |
| Overall Length/Diameter | : | 5.38 in |
| Seal Material | : | Nitrile Rubber |
| Measurement System | : | Imperial |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_DVC13K203SM_Catalog.pdf
