- Timken® QACW20A400SEB
QACW20A400SEB

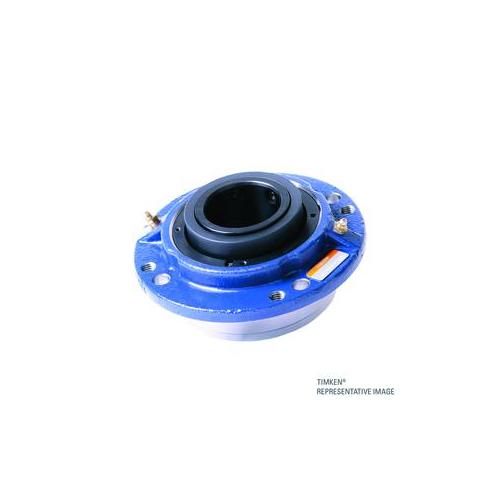

Timken® QACW20A400SEB QACW Single Concentric Piloted Flange Cartridge, 4 in Dia Bore, 6.63 in L Bolt Center-to-Center, 9.38 in Dia Bolt Circle, Piloted Flange Mount, 10.88| in OAL/Dia
- CP#:
- Item#: QACW20A400SEB
- Mfr#: QACW20A400SEB
- UPC: 883450037730
- Single Collar set-screw locking - CL Series - Two set screws positioned at 60 deg provide maximum positive locking power with minimal run out
- Double-lip seal with garter spring for maximum contact and a heavy-duty steel shield that protects the seal from large pieces of debris that could damage the seal itself
- Made from nitrile rubber and designed for extreme moisture, fine dust or extremely dirty applications
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QACW20A400SEB, Piloted Flange Cartridge, Single Concentric, Series: QACW, 4 in Bore, 6.63 in Bolt Center-to-Center Length, 9.38 in Diameter Bolt Circle, Piloted Flange Mounting, 10.88| in Overall Length/Diameter, 4.59 in Overall Depth, Single Concentric Locking Device, Steel Bearing, Nitrile Rubber Seal, 435000 N Dynamic/502000 N Static Load, 900 rpm Grease/900 rpm Oil Maximum, -50 to 200 deg F, Painted
SPECIFICATIONS
| Bolt Center-to-Center Length | : | 6.63 in |
| Series | : | QACW |
| Bolt Circle Diameter | : | 9.38 in |
| Bearing Material | : | Steel |
| Finish | : | Painted |
| Flange Mounting Type | : | Piloted |
| Locking Device | : | Single Concentric |
| Load Capacity | : | 435000 N Dynamic/502000 N Static |
| Maximum Speed | : | 900 rpm Grease/900 rpm Oil |
| Overall Depth | : | 4.59 in |
| Inside Diameter | : | 4 in |
| Overall Length/Diameter | : | 10.88 in |
| Seal Material | : | Nitrile Rubber |
| Measurement System | : | Imperial |
