Timken® QAAFX20A315ST

Timken® QAAFX20A315ST

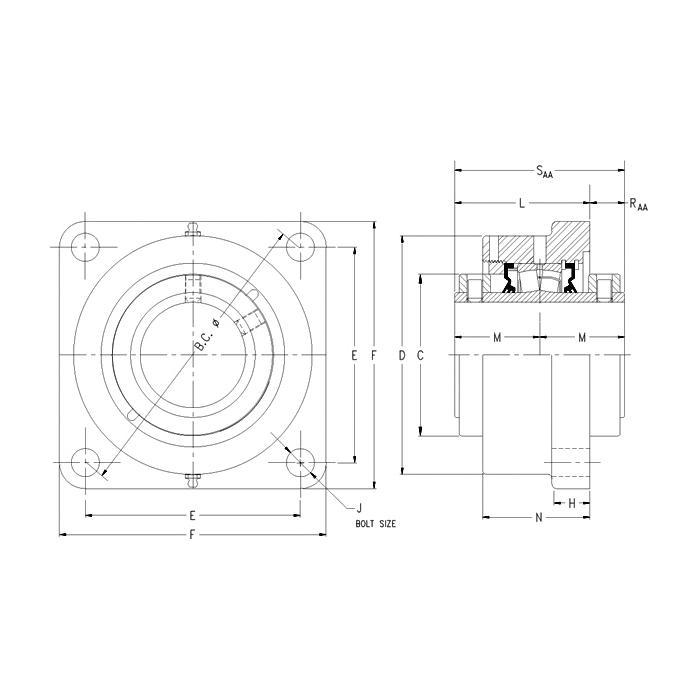

TimkenĀ® QAAFX20A315ST 5000 Heavy Duty Non-Expansion Cylindrical Bore Spherical Roller Bearing Unit, 3-15/16 in Dia Bore, 8.31 in L Bolt Center-to-Center, 11-3/4 in Dia Bolt Circle, 4-Bolt Square Flange Mount, 10.56 in OAL/Dia

  • Item#: QAAFX20A315ST
  • Mfr#: QAAFX20A315ST
  • UPC: 883450136297
  • Concentric locking collar with two set screws at 60 degrees to provide maximum positive locking power with minimal run out
  • Double collared insert provides double the holding power compared to our standard single collared insert
  • Double row bearing
  • Cast steel housing
  • Open end type
  • Solid block housing
  • Do not operate at bearing temperatures above 250 deg F
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading


Timken® solid block mounted spherical roller bearings (housed units) feature high-performance, low operating temperature Timken® double row spherical roller bearings, cast steel housings, unique locking and sealing design options to offer protection against contaminants in the harshest environments. Timken® spherical roller bearings are ideal for handling high radial loads.

Timken® Spherical Roller Bearing Unit, Heavy Duty Non-Expansion Cylindrical Bore, Series: 5000, 3-15/16 in Bore, 8.31 in Bolt Center-to-Center Length, 11-3/4 in Diameter Bolt Circle, 4-Bolt Square Flange Mounting, 10.56 in Overall Length/Diameter, 5.92 in Overall Depth, 10.56 in Overall Height, Double Concentric Collar Locking Device, Steel Bearing, DuPont™ Teflon® Seal, 97700 lb Dynamic/113000 lb Static Load, 1600 rpm Grease/2000 rpm Oil Maximum, -40 to 250 deg F, Powder Coated


Bearing Material      :      Steel
Finish      :      Powder Coated
Load Capacity      :      97700 lb Dynamic/113000 lb Static
Locking Device      :      Double Concentric Collar
Maximum Speed      :      1600 rpm Grease/2000 rpm Oil
Overall Depth      :      5.92 in
Overall Height      :      10.56 in
Seal Material      :      DuPont™ Teflon®
Series      :      5000
Temperature Rating      :      -40 to 250 deg F
Type      :      Type Type
Bore Diameter      :      3-15/16 in
Bolt Center-to-Center Length      :      8.31 in
Bolt Circle Diameter      :      11-3/4 in
Flange Mounting Type      :      4-Bolt Square
Overall Length/Diameter      :      10.56 in
