QAAF18A307SO

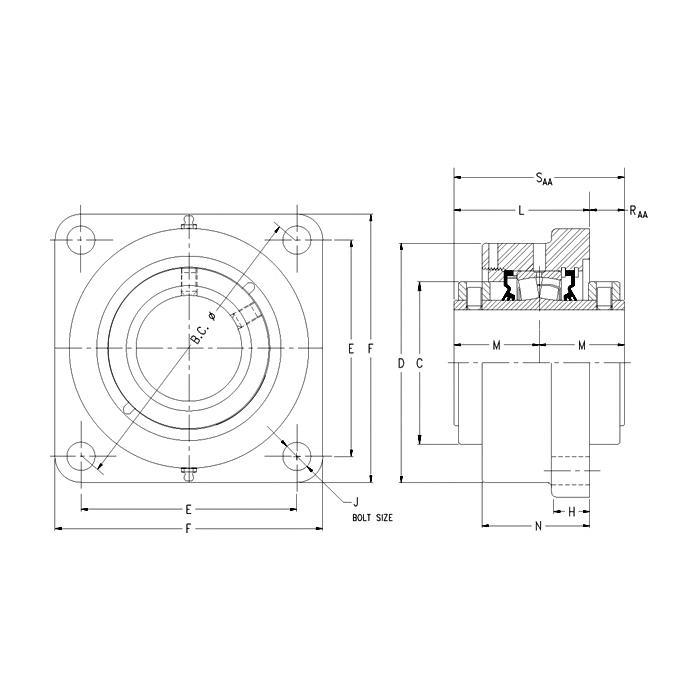

Timken® QAAF18A307SO Heavy Duty Non-Expansion Cylindrical Bore Spherical Roller Bearing Unit, 3-7/16 in Dia Bore, 7 in L Bolt Center-to-Center, 9.91 in Dia Bolt Circle, 4-Bolt Square Flange Mount, 8.63 in OAL/Dia
- CP#:
- Item#: QAAF18A307SO-P01
- Mfr#: QAAF18A307SO
- UPC: 883450268417
- Concentric locking collar with two set screws at 60 degrees to provide maximum positive locking power with minimal run out
- Double collared insert provides double the holding power compared to our standard single collared insert
- Triple-lip contacting, self-purging urethane seal is excellent in moist and dirty applications, chemical and corrosion-resistant and resistant to abrasion
- Double row bearing
- Cast steel housing
- Open end type
- Solid block housing
- Do not operate at bearing temperatures above 250 deg F
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Timken® solid block mounted spherical roller bearings (housed units) feature high-performance, low operating temperature Timken® double row spherical roller bearings, cast steel housings, unique locking and sealing design options to offer protection against contaminants in the harshest environments. Timken® spherical roller bearings are ideal for handling high radial loads.
Timken®, QAAF18A307SO, Spherical Roller Bearing Unit, Heavy Duty Non-Expansion Cylindrical Bore, 3-7/16 in Bore, 7 in Bolt Center-to-Center Length, 9.91 in Diameter Bolt Circle, 4-Bolt Square Flange Mounting, 8.63 in Overall Length/Diameter, 5.18 in Overall Depth, 8.63 in Overall Height, Double Concentric Collar Locking Device, Steel Bearing, Urethane Seal, 79700 lb Dynamic/87200 lb Static Load, 1000 rpm Maximum, -40 to 250 deg F, Powder Coated
SPECIFICATIONS
| Bolt Center-to-Center Length | : | 7 in |
| Bolt Circle Diameter | : | 9.91 in |
| Bearing Material | : | Steel |
| Finish | : | Powder Coated |
| Flange Mounting Type | : | 4-Bolt Square |
| Locking Device | : | Double Concentric Collar |
| Load Capacity | : | 79700 lb Dynamic/87200 lb Static |
| Maximum Speed | : | 1000 rpm |
| Overall Depth | : | 5.18 in |
| Overall Height | : | 8.63 in |
| Overall Length/Diameter | : | 8.63 in |
| Seal Material | : | Urethane |
