QAACW15A215ST

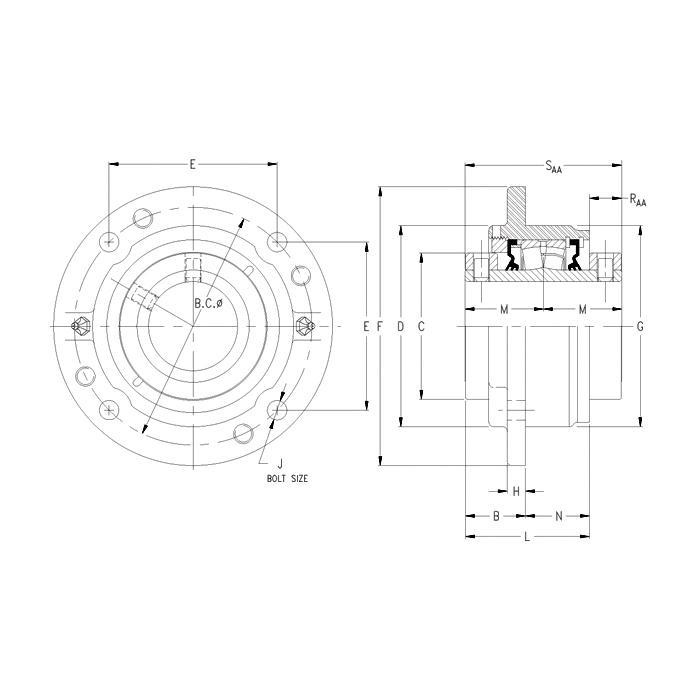

Timken® QAACW15A215ST Heavy Duty Non-Expansion Cylindrical Bore Spherical Roller Bearing Unit, 2-15/16 in Dia Bore, 5.3 in L Bolt Center-to-Center, 7-1/2 in Dia Bolt Circle, 4-Bolt Piloted Flange Mount, 8-3/4 in OAL/Dia
- CP#:
- Item#: QAACW15A215ST
- Mfr#: QAACW15A215ST
- UPC: 883450017589
- Concentric locking collar with two set screws at 60 degrees to provide maximum positive locking power with minimal run out
- Double collared insert provides double the holding power compared to our standard single collared insert
- Double row bearing
- Cast steel housing
- Open end type
- Solid block housing
- Do not operate at bearing temperatures above 250 deg F
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Timken® solid block mounted spherical roller bearings (housed units) feature high-performance, low operating temperature Timken® double row spherical roller bearings, cast steel housings, unique locking and sealing design options to offer protection against contaminants in the harshest environments. Timken® spherical roller bearings are ideal for handling high radial loads.
Timken®, QAACW15A215ST, Spherical Roller Bearing Unit, Heavy Duty Non-Expansion Cylindrical Bore, 2-15/16 in Bore, 5.3 in Bolt Center-to-Center Length, 7-1/2 in Diameter Bolt Circle, 4-Bolt Piloted Flange Mounting, 8-3/4 in Overall Length/Diameter, 4.74 in Overall Depth, Double Concentric Collar Locking Device, Steel Bearing, DuPont® Teflon® Seal, 49900 lb Dynamic/54100 lb Static Load, 2400 rpm Grease/2900 rpm Oil Maximum, -40 to 250 deg F, Powder Coated
SPECIFICATIONS
| Bolt Center-to-Center Length | : | 5.3 in |
| Bolt Circle Diameter | : | 7-1/2 in |
| Bearing Material | : | Steel |
| Finish | : | Powder Coated |
| Flange Mounting Type | : | 4-Bolt Piloted |
| Locking Device | : | Double Concentric Collar |
| Load Capacity | : | 49900 lb Dynamic/54100 lb Static |
| Maximum Speed | : | 2400 rpm Grease/2900 rpm Oil |
| Overall Depth | : | 4.74 in |
| Inside Diameter | : | 2-15/16 in |
| Overall Length/Diameter | : | 8-3/4 in |
| Seal Material | : | DuPont® Teflon® |
| Measurement System | : | Imperial |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_DVC13K203SM_Catalog.pdf
