QAAC22A408SM

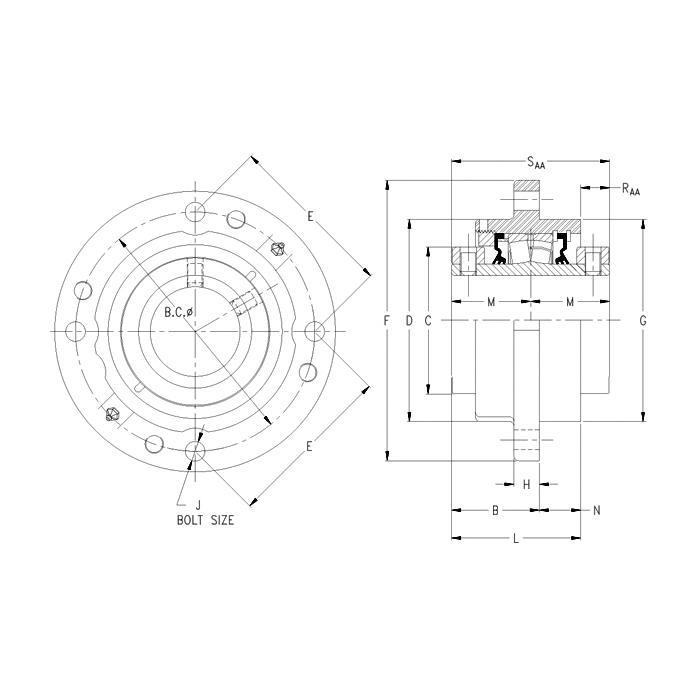

Timken® QAAC22A408SM Heavy Duty Non-Expansion Cylindrical Bore Spherical Roller Bearing Unit, 4-1/2 in Dia Bore, 5.88 in L Bolt Center-to-Center, 11-3/4 in Dia Bolt Circle, 6-Bolt Piloted Flange Mount, 13-1/2 in OAL/Dia
- CP#:
- Item#: QAAC22A408SM
- Mfr#: QAAC22A408SM
- UPC: 883450305228
- Concentric locking collar with two set screws at 60 degrees to provide maximum positive locking power with minimal run out
- Double collared insert provides double the holding power compared to our standard single collared insert
- Triple-lip contacting, self-purging nitrile rubber seal is excellent in moist and dirty applications, chemical and corrosion resistant
- Double row bearing
- Cast steel housing
- Open end type
- Solid block housing
- Do not operate at bearing temperatures above 250 deg F
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Timken® solid block mounted spherical roller bearings (housed units) feature high-performance, low operating temperature Timken® double row spherical roller bearings, cast steel housings, unique locking and sealing design options to offer protection against contaminants in the harshest environments. Timken® spherical roller bearings are ideal for handling high radial loads.
Timken®, QAAC22A408SM, Spherical Roller Bearing Unit, Heavy Duty Non-Expansion Cylindrical Bore, 4-1/2 in Bore, 5.88 in Bolt Center-to-Center Length, 11-3/4 in Diameter Bolt Circle, 6-Bolt Piloted Flange Mounting, 13-1/2 in Overall Length/Diameter, 4.97 in Overall Depth, Double Concentric Collar Locking Device, Steel Bearing, Nitrile Rubber Seal, 125000 lb Dynamic/147000 lb Static Load, 900 rpm Maximum, -40 to 250 deg F, Powder Coated
SPECIFICATIONS
| Bolt Center-to-Center Length | : | 5.88 in |
| Bolt Circle Diameter | : | 11-3/4 in |
| Bearing Material | : | Steel |
| Finish | : | Powder Coated |
| Flange Mounting Type | : | 6-Bolt Piloted |
| Locking Device | : | Double Concentric Collar |
| Load Capacity | : | 125000 lb Dynamic/147000 lb Static |
| Maximum Speed | : | 900 rpm |
| Overall Depth | : | 4.97 in |
| Inside Diameter | : | 4-1/2 in |
| Overall Length/Diameter | : | 13-1/2 in |
| Seal Material | : | Nitrile Rubber |
| Measurement System | : | Imperial |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_DVC13K203SM_Catalog.pdf
