P304KDDZ5FS50000

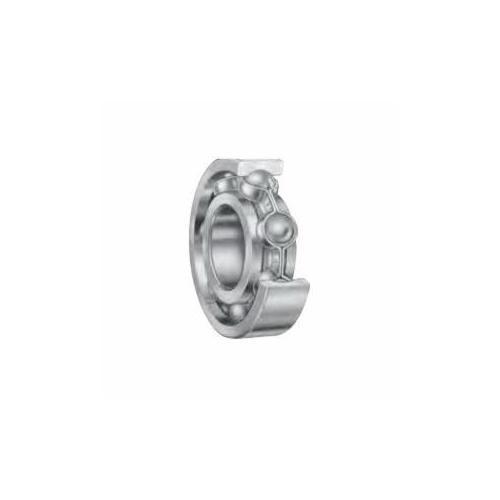

Timken® P304KDDZ5FS50000 300 Medium Round Bore Deep Groove Radial Ball Bearing, 20 mm Dia Bore, 52 mm Dia Outside, 1 Rows, 15 mm W, 3970 lb Dynamic/1770 lb Static Load
- CP#:
- Item#: 304KDD
- Mfr#: P304KDDZ5FS50000
- UPC: 087796046306
- A heavier cross section than the 200 series
- Capable of carrying considerably heavier radial, thrust and combined loads for a given bore size
- Capable of withstanding heavy shock loads
- Uses conrad-type bearing that is well-balanced, with deep races and uninterrupted race shoulders
- Electric motor quality for applications where quietness is a requirement
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
The 300 series radial ball bearings are similar in construction to the 200 series, but have considerably heavier cross sections throughout. They provide greater radial and thrust capacity and are able to withstand heavier shock loads. Because of their rugged construction, these bearings are particularly suited for heavy-duty applications like those found in large electric motors, woodworking machinery and gear boxes. This series includes both conrad and maximum capacity designs as well as shielded, sealed and snap ring variations. In the 300 series wide-type, rubber seal(W300PP) and mechani-seal(W300KLL) bearings are made with standard bores and outside diameters, but in width equal to the corresponding sizes of double-row bearings.
Timken®, P304KDDZ5FS50000, Deep Groove Radial Ball Bearing, Medium Round Bore, Series: 300, 20 mm Bore, 52 mm OD, 1 Rows, 15 mm Width, Double Shield Closure, 3970 lb Dynamic/1770 lb Static Load, Steel Bearing, Metal Seal, 9720 rpm Maximum, -50 to 120 deg C, Uncoated
SPECIFICATIONS
| Series | : | 300 |
| Bearing Material | : | Steel |
| Finish | : | Uncoated |
| Load Capacity | : | 3970 lb Dynamic/1770 lb Static |
| Maximum Speed | : | 9720 rpm |
| Outside Diameter | : | 52 mm |
| Number of Rows | : | 1 |
| Seal Material | : | Metal |
| Inside Diameter | : | 20 mm |
| Measurement System | : | Metric |
| Width | : | 15 mm |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Fafnir_204PY3_Catalog.pdf
