- Timken® P203PPGZ3FS50000
P203PPGZ3FS50000

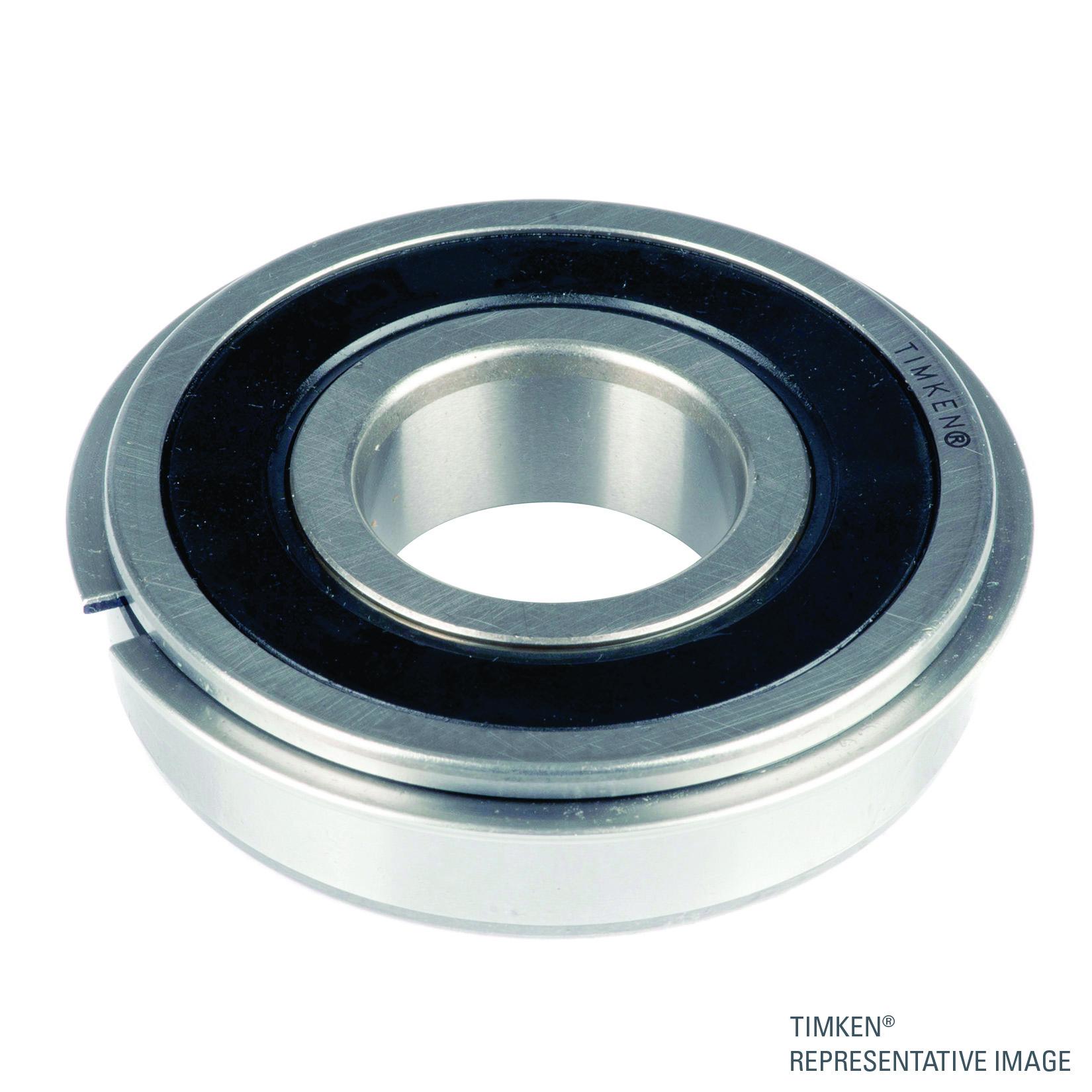

Timken® P203PPGZ3FS50000 200 Light Round Bore Deep Groove Radial Ball Bearing, 0.669 in Dia Bore, 1.5748 in Dia Outside, 1 Rows, 0.4724 in W, 2380 lb Dynamic/1070 lb Static Load
- CP#:
- Item#: 203PPG
- Mfr#: P203PPGZ3FS50000
- UPC: 087796045484
- Conrad-type bearing is well-balanced, with deep races and uninterrupted race shoulders
- Excellent, general purpose bearing
- Capacity to carry radial and thrust in either direction or combined loads
- Electric motor quality for applications where quietness is a requirement
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Bearings in the 200 series bearings feature a close dimensional balance between bore, outside diameter and width. These characteristics make them well-suited for a broad range of applications involving light to medium loads combined with relatively high-speeds. Wide-type 200 series rubber seal(W200PP) and mechani-seal(W200KLL) bearings are made with standard bores and outside diameters, but in widths equal to the corresponding sizes of double-row bearings. This series offers a larger support area for shaft and housing contact and extra space for lubricant.
Timken®, P203PPGZ3FS50000, Deep Groove Radial Ball Bearing, Light Round Bore, Series: 200, 0.669 in Bore, 1.5748 in OD, 1 Rows, 0.4724 in Width, Double Seal Closure, 2380 lb Dynamic/1070 lb Static Load, Steel Bearing, Buna-N Seal, 11050 rpm Maximum, -50 to 120 deg C, Uncoated
SPECIFICATIONS
| Series | : | 200 |
| Bearing Material | : | Steel |
| Finish | : | Uncoated |
| Load Capacity | : | 2380 lb Dynamic/1070 lb Static |
| Maximum Speed | : | 11050 rpm |
| Outside Diameter | : | 1.5748 in |
| Number of Rows | : | 1 |
| Seal Material | : | Buna-N |
| Inside Diameter | : | 0.669 in |
| Measurement System | : | Imperial |
| Width | : | 0.4724 in |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Fafnir_204PY3_Catalog.pdf
