LAK 1/2

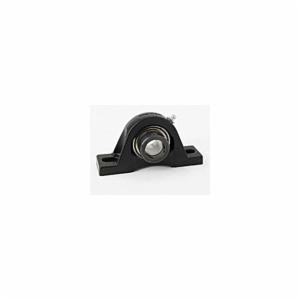

Timken® LAK 1/2 Normal Duty Pillow Block Ball Bearing Unit, 1/2 in Dia Bore, 3.626 in L Bolt Center-to-Center, 1.063 in Base to Bore Centerline, 4.874 in OAL x 2.094 in OAH
- CP#:
- Item#: LAK 1/2-P01
- Mfr#: LAK 1/2
- UPC: 087796107441
- Heavier than our standard block with solid, flat feet for increased strength
- Compact, one-piece housing can be mounted in any position
- Pillow blocks self-align at mounting with the spherical outside diameter of the bearing fitting into the corresponding spherical housing seat
- Pre-lubricated and ready for immediate installation
- Grease fitting for relubrication
- All units are supplied with self-locking collar
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Timken® ball bearing housed units feature a wide-inner-ring ball bearing for additional shaft support. Designed for mounting on straight shafts with a slip fit, these housed units are available in an extensive array of types and sizes to accommodate many industrial applications.
Timken® Pillow Block Ball Bearing Unit, Normal Duty, Series: LAK, 1/2 in Bore, 3.626 in Bolt Center-to-Center Length, 1.063 in Base to Bore Centerline, 4.874 in Overall Length, 1-15/32 in Overall Width, 2.094 in Overall Height, Two-Bolt Base Mounting, Round Bore, 1.189 in Base Width, Eccentric Collar Locking Device, Labyrinth Seal, Non-Expansion (Fixed), 2400 lb Dynamic/1100 lb Static Load, 250 deg F, Cast Iron, Uncoated
SPECIFICATIONS
| Base Width | : | 1.189 in |
| Base to Bore Centerline | : | 1.063 in |
| Series | : | LAK |
| Bolt Center-to-Center Length | : | 3.626 in |
| Mounting Type | : | Two-Bolt Base |
| Expansion Type | : | Non-Expansion (Fixed) |
| Locking Device | : | Eccentric Collar |
| Finish | : | Uncoated |
| Overall Length | : | 4.874 in |
| Load Capacity | : | 2400 lb Dynamic/1100 lb Static |
| Material | : | Cast Iron |
| Overall Width | : | 1-15/32 in |
| Overall Height | : | 2.094 in |
| Seal Type | : | Labyrinth |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_KAK1_1_4_PS_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_LAK_1_2_Specification_Sheet.pdf
