- Timken® E-P4B-TRB-60MM
E-P4B-TRB-60MM
Timken® E-P4B-TRB-60MM Heavy Duty Type E Pillow Block Roller Bearing Unit, 60 mm Dia Bore, 8-5/16 to 8-11/16 in L Bolt Center-to-Center, 69.85 mm Base to Bore Centerline, 266.7 mm OAL x 145.258 mm OAH
- CP#:
- Item#: E-P4B-TRB-60MM
- Mfr#: E-P4B-TRB-60MM
- UPC: 053893775548
- Industry leading high performance triple-barrier seals result in improved grease retention and are more effective at preventing water and mud/slurry ingress
- Rotating collar acts as an initial flinger and provides an additional barrier
- Electric deposition coatings on housings and collars provide superior corrosion resistance
- Set screws with nylon patch greatly reduce set screw back out, even in the most severe applications
- High performance Timken® bearings provide the highest rating and bearing life
- Double row bearing
- Longer bearing life
- Lower maintenance cost
- Optimized performance
- Increased uptime
- Bearing steel
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Timken® Type E mounted tapered roller bearings (housed units) feature industry leading premium tapered roller bearings, high performance triple-barrier seals, e-coated housings and locking collars. Timken® tapered roller bearings have the capacity to manage both radial and axial loads and are engineered to provide the greatest durability in the most compact space.
Timken®, E-P4B-TRB-60MM, Pillow Block Roller Bearing Unit, Heavy Duty Type E, 60 mm Bore, 8-5/16 to 8-11/16 in Bolt Center-to-Center Length, 69.85 mm Base to Bore Centerline, 266.7 mm Overall Length, 101.6 mm Overall Width, 145.258 mm Overall Height, Four-Bolt Base Mounting, Round Bore, 88.9 mm Base Width, Double Set Screw Collar Locking Device, Triple Barrier Seal, Non-Expansion, 11600 lb Dynamic/54000 lb Static Load, -54 to 250 deg F, 2420 rpm Maximum, Cast Iron, E-Coated

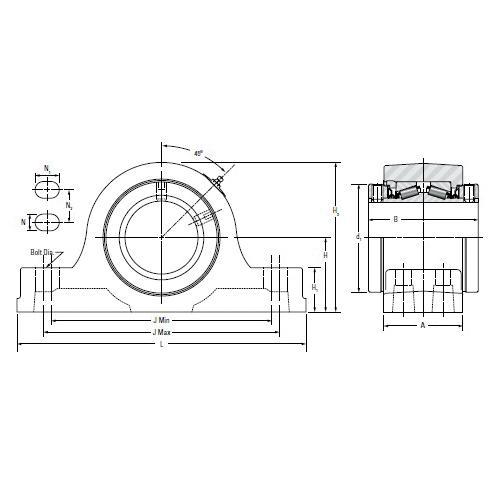

SPECIFICATIONS
| Base Width | : | 88.9 mm |
| Base to Bore Centerline | : | 69.85 mm |
| Bolt Center-to-Center Length | : | 8-5/16 to 8-11/16 in |
| Mounting Type | : | Four-Bolt Base |
| Expansion Type | : | Non-Expansion |
| Locking Device | : | Double Set Screw Collar |
| Finish | : | E-Coated |
| Overall Length | : | 266.7 mm |
| Load Capacity | : | 11600 lb Dynamic/54000 lb Static |
| Material | : | Cast Iron |
| Maximum Speed | : | 2420 rpm |
| Overall Width | : | 101.6 mm |
| Inside Diameter | : | 60 mm |
| Overall Height | : | 145.258 mm |
| Measurement System | : | Metric |
| Seal Type | : | Triple Barrier |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_E_P4B_TRB_65MM_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_E_P4B_TRB_65MM_Specification_Sheet.pdf
