E-P2B-TRB-80MM

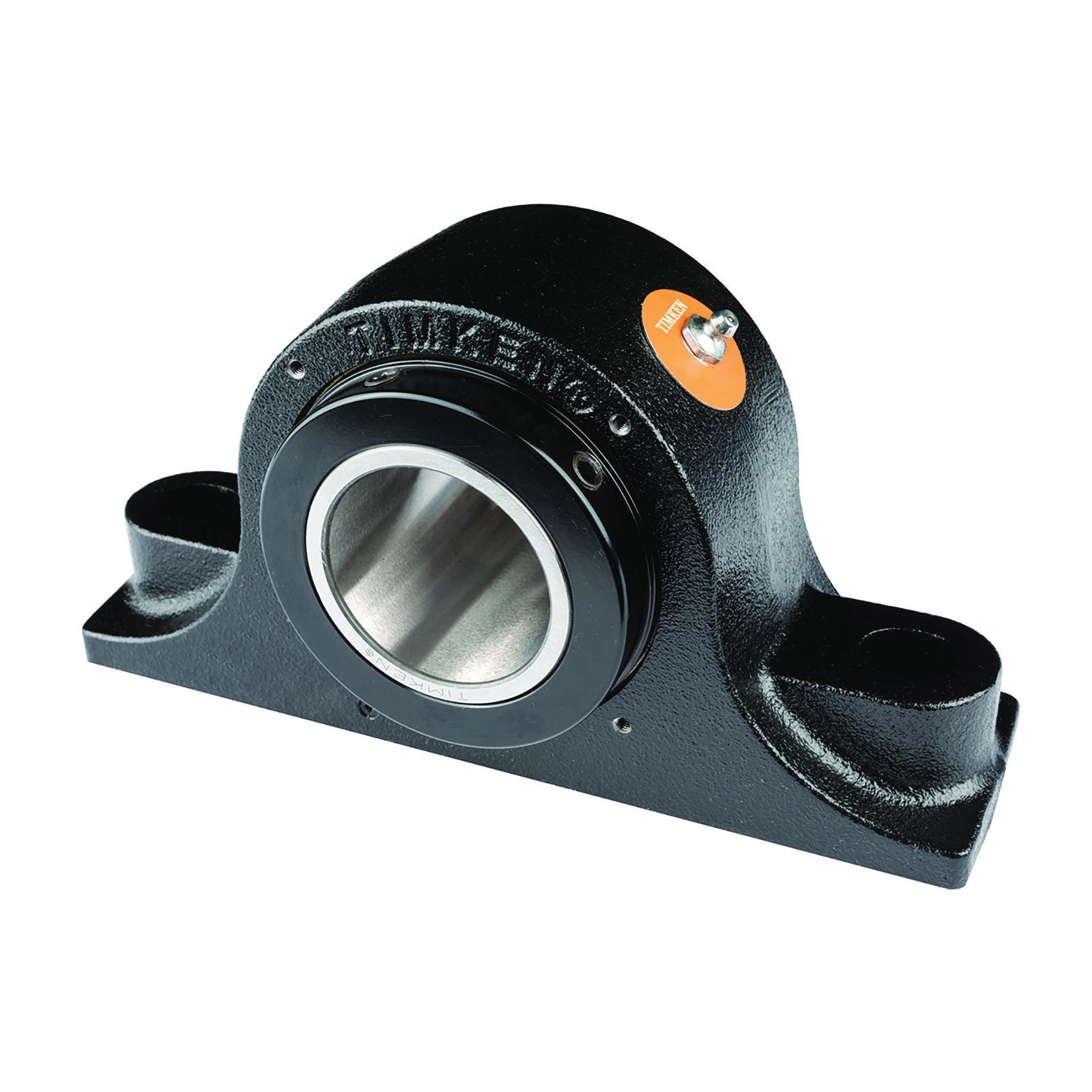

Timken® E-P2B-TRB-80MM Heavy Duty Type E Pillow Block Roller Bearing Unit, 80 mm Dia Bore, 10-13/16 to 11-3/16 in L Bolt Center-to-Center, 95.25 mm Base to Bore Centerline, 355.6 mm OAL x 190.5 mm OAH
- CP#:
- Item#: E-P2B-TRB-80MM
- Mfr#: E-P2B-TRB-80MM
- UPC: 053893775517
- Industry leading high performance triple-barrier seals result in improved grease retention and are more effective at preventing water and mud/slurry ingress
- Rotating collar acts as an initial flinger and provides an additional barrier
- Electric deposition coatings on housings and collars provide superior corrosion resistance
- Set screws with nylon patch greatly reduce set screw back out, even in the most severe applications
- High performance Timken® bearings provide the highest rating and bearing life
- Double row bearing
- Longer bearing life
- Lower maintenance cost
- Optimized performance
- Increased uptime
- Bearing steel
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Timken® Type E mounted tapered roller bearings (housed units) feature industry leading premium tapered roller bearings, high performance triple-barrier seals, e-coated housings and locking collars. Timken® tapered roller bearings have the capacity to manage both radial and axial loads and are engineered to provide the greatest durability in the most compact space.
Timken®, E-P2B-TRB-80MM, Pillow Block Roller Bearing Unit, Heavy Duty Type E, 80 mm Bore, 10-13/16 to 11-3/16 in Bolt Center-to-Center Length, 95.25 mm Base to Bore Centerline, 355.6 mm Overall Length, 127 mm Overall Width, 190.5 mm Overall Height, Two-Bolt Base Mounting, Round Bore, 88.9 mm Base Width, Double Set Screw Collar Locking Device, Triple Barrier Seal, Non-Expansion, 19600 lb Dynamic/108600 lb Static Load, -54 to 250 deg F, 1640 rpm Maximum, Cast Iron, E-Coated
SPECIFICATIONS
| Base Width | : | 88.9 mm |
| Base to Bore Centerline | : | 95.25 mm |
| Bolt Center-to-Center Length | : | 10-13/16 to 11-3/16 in |
| Mounting Type | : | Two-Bolt Base |
| Expansion Type | : | Non-Expansion |
| Locking Device | : | Double Set Screw Collar |
| Finish | : | E-Coated |
| Overall Length | : | 355.6 mm |
| Load Capacity | : | 19600 lb Dynamic/108600 lb Static |
| Material | : | Cast Iron |
| Maximum Speed | : | 1640 rpm |
| Overall Width | : | 127 mm |
| Inside Diameter | : | 80 mm |
| Overall Height | : | 190.5 mm |
| Measurement System | : | Metric |
| Seal Type | : | Triple Barrier |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_E_P4B_TRB_65MM_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_E_P2B_TRB_60MM_Specification_Sheet.pdf
