- Timken® E-P2B-TRB-3 1/4
E-P2B-TRB-3 1/4

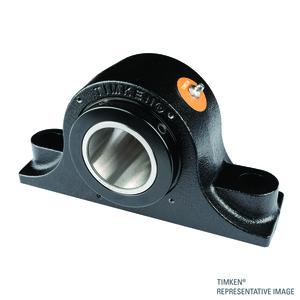

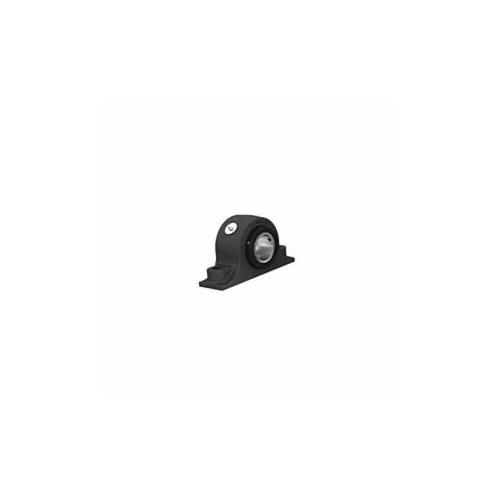

Timken® E-P2B-TRB-3 1/4 Type E Pillow Block Roller Bearing Housed Unit, 3-1/4 in Dia Bore, 10-13/16 to 11-13/16 in L Bolt Center-to-Center, 3-3/4 in Base to Bore Centerline, 14 in OAL x 7-1/2 in OAH
- CP#:
- Item#: E-P2B-TRB-3 1/4
- Mfr#: E-P2B-TRB-3 1/4
- UPC: 053893607306
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Timken® Type E mounted tapered roller bearings (housed units) feature industry-leading premium tapered roller bearings, high-performance triple-barrier seals, e-coated housings and locking collars. Timken® tapered roller bearings have the capacity to manage both radial and axial loads and are engineered to provide the greatest durability in the most compact space.
Timken®, E-P2B-TRB-3 1/4, Pillow Block Roller Bearing Housed Unit, Type E, 3-1/4 in Bore, 10-13/16 to 11-13/16 in Bolt Center-to-Center Length, 3-3/4 in Base to Bore Centerline, 14 in Overall Length, 5 in Overall Width, 7-1/2 in Overall Height, Two-Bolt Base Mounting, Round Bore, 3-1/2 in Base Width, Double Set Screw Collar Locking Device, Non-Expansion, 19600 lb Dynamic/108600 lb Static Load, -54 to 250 deg F, 1640 rpm Maximum, Powder Coated
SPECIFICATIONS
| Base Width | : | 3-1/2 in |
| Base to Bore Centerline | : | 3-3/4 in |
| Bolt Center-to-Center Length | : | 10-13/16 to 11-13/16 in |
| Mounting Type | : | Two-Bolt Base |
| Expansion Type | : | Non-Expansion |
| Locking Device | : | Double Set Screw Collar |
| Finish | : | Powder Coated |
| Overall Length | : | 14 in |
| Load Capacity | : | 19600 lb Dynamic/108600 lb Static |
| Maximum Speed | : | 1640 rpm |
| Overall Width | : | 5 in |
| Inside Diameter | : | 3-1/4 in |
| Overall Height | : | 7-1/2 in |
| Measurement System | : | Imperial |
| Seal Type | : | Double Lip |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_E_P2B_TRB_1_15_16_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_E_P2B_TRB_3_1_4_Specification_Sheet.pdf
