DVP10K111STHT

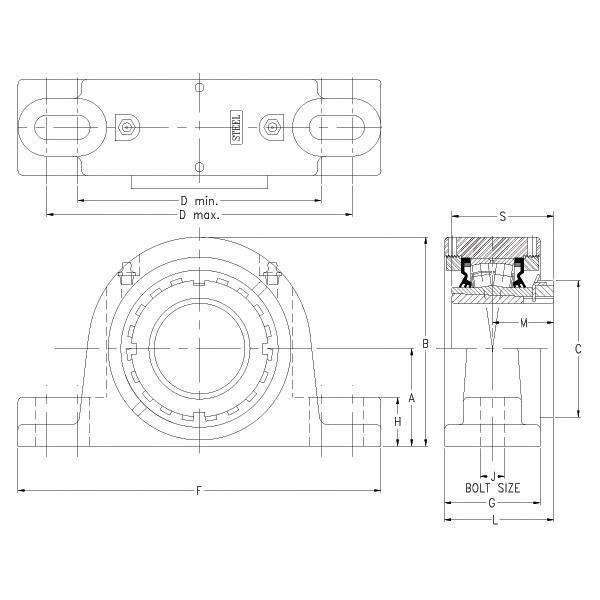

Timken® DVP10K111STHT Pillow Block Spherical Roller Bearing Unit, 1-11/16 in Dia Bore, 5.7 to 6.5 in L Bolt Center-to-Center, 2.13 in Base to Bore Centerline, 7.88 in OAL x 4-1/2 in OAH
- CP#:
- Item#: DVP10K111STHT
- Mfr#: DVP10K111STHT
- UPC: 883450502023
- 2300 series tapered adapter sleeve for increased shaft contact
- Best shaft concentricity and highest capacity all the while having the ability to accommodate undersized housing
- Drop-in replacement for common American set screw mounted units
- High temperature grease
- Double row bearing
- 22210 bearing insert bore series
- Bearing steel
- Open end type
- 360 deg shaft holding
- Accommodates undersized shafting
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Timken® solid block mounted spherical roller bearings (housed units) feature high-performance, low operating temperature Timken® double row spherical roller bearings, cast steel housings, unique locking and sealing design options to offer protection against contaminants in the harshest environments. Timken® spherical roller bearings are ideal for handling high radial loads.
Timken®, DVP10K111STHT, Pillow Block Spherical Roller Bearing Unit, 1-11/16 in Bore, 5.7 to 6.5 in Bolt Center-to-Center Length, 2.13 in Base to Bore Centerline, 7.88 in Overall Length, 2.4 in Overall Width, 4-1/2 in Overall Height, Two-Bolt Base Mounting, 2.16 in Base Width, Tapered Adapter Locking Device, Non-Expansion (Fixed), 26300 lb Dynamic/26600 lb Static Load, 3550 rpm Grease/4200 rpm Oil Maximum, Cast Steel, Powder Coated
SPECIFICATIONS
| Base Width | : | 2.16 in |
| Base to Bore Centerline | : | 2.13 in |
| Bolt Center-to-Center Length | : | 5.7 to 6.5 in |
| Mounting Type | : | Two-Bolt Base |
| Expansion Type | : | Non-Expansion (Fixed) |
| Locking Device | : | Tapered Adapter |
| Finish | : | Powder Coated |
| Overall Length | : | 7.88 in |
| Load Capacity | : | 26300 lb Dynamic/26600 lb Static |
| Material | : | Cast Steel |
| Maximum Speed | : | 3550 rpm Grease/4200 rpm Oil |
| Overall Width | : | 2.4 in |
| Inside Diameter | : | 1-11/16 in |
| Overall Height | : | 4-1/2 in |
| Measurement System | : | Imperial |
| Seal Type | : | Labyrinth T |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_DVP10K111SM_Catalog.pdf
