7205WN

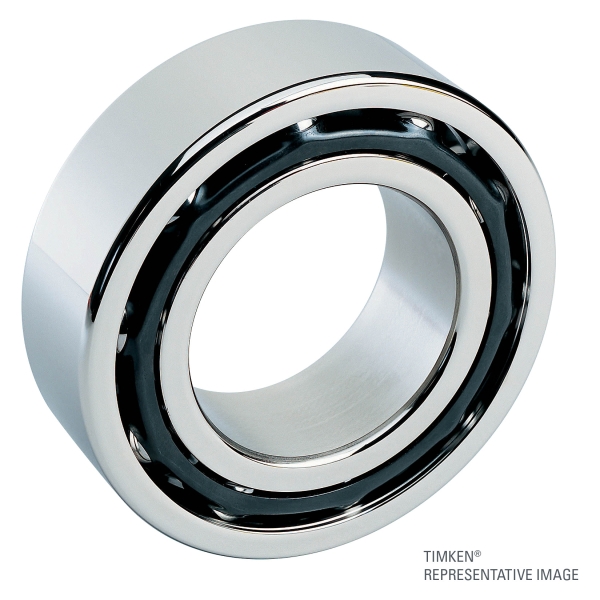

Single Row Angular Contact Ball Bearing
- CP#:
- Item#: 7205WN
- Mfr#: 7205WN
- UPC: 08779619893
- 40 degree contact angle for heavy thrust load capacity
- One-piece, ball-piloted, pressed brass cage
- Maximum capacity angular contact ball bearing
- Enhanced raceway finish for quiet running
- Refined bore diameter tolerance for longer bearing life
- High-speed capabilities
- Dimensionally interchangeable with 200 series deep groove ball bearings
- Additional cage materials and contact angles on demand
- Expanded options include special lubricants, preloads and coatings for additional corrosion resistance
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
With more than a century of knowledge and innovation, Timken is an industry-leader in designing, manufacturing and applying high performance engineered bearings into our customers’ most challenging applications. With one common global quality system across all manufacturing plants, we deliver consistent product performance and reliability anywhere in the world. As a Timken customer, you are connected to a team of application, sales and on-site service engineers who help solve unique equipment challenges resulting in extended uptime, productivity and efficiency. Timken® (Fafnir) angular contact ball bearings are designed to handle both radial and axial loading, and are specifically engineered for use in high-speed applications. Single-row bearings have high thrust capacity in one direction and fit shaft sizes of 10mm to 150mm. Double-row angular contact bearings have excellent axial and radial rigidity in confined space and fit shaft sizes of 12mm to 150mm. The high performance single row 7000 series angular contact product family is available as light 7200 series, medium 7300 series and heavy 7400 series. Single Row Angular Contact Ball Bearing; Metric Series; 25mm Bore; 52mm OD; 15mm Width; Open; Cylindrical Bore; Steel Cage; 40deg Contact Angle; ISO P0 Tolerance
SPECIFICATIONS
| Bearing Type | : | Unmounted Ball Bearing |
| Series | : | Unspecified |
| Bearing Material | : | Steel |
| Seal Type | : | Unspecified |
| Contact Angle | : | 40 deg |
| Locking Device | : | Unspecified |
| Finish | : | Uncoated |
| Load Capacity | : | 3230 lb Dynamic/2120 lb Static |
| Maximum Speed | : | 7775 rpm Grease/10370 rpm Oil |
| Outside Diameter | : | 52 mm |
| Overall Width | : | 15 mm |
| Number of Rows | : | 1 |
| Duty Type | : | Unspecified |
| Inside Diameter | : | 25 mm |
| Mounted | : | Unmounted |
| Measurement System | : | Metric |
| Width | : | 15 mm |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Fafnir_5210W_C1_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Fafnir_7205WN_Specification_Sheet.pdf
