6320M-C3

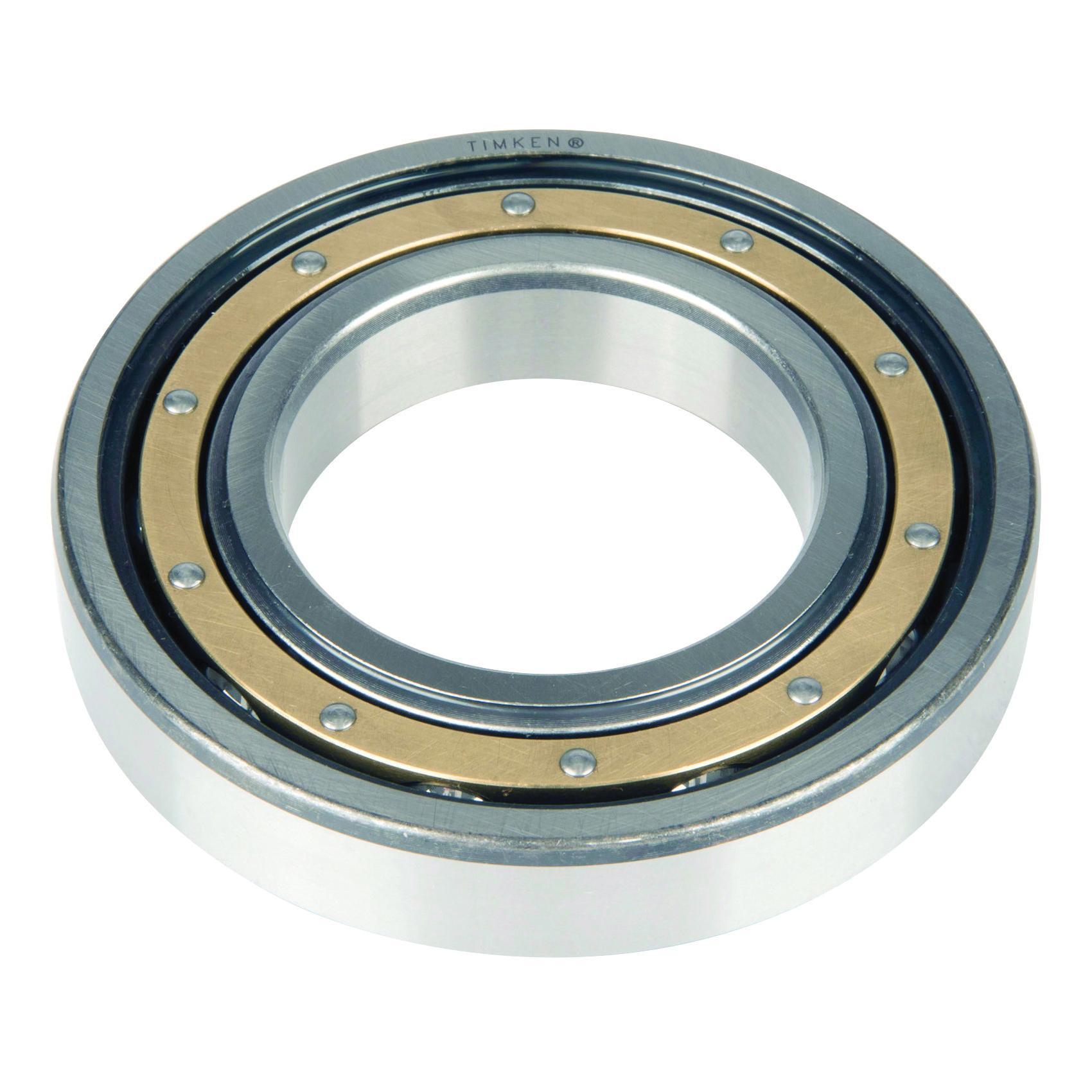

Timken® 6320M-C3 6300 Standard Straight Bore ISO Deep Groove Radial Ball Bearing, 100 mm Dia Bore, 215 mm Dia Outside, 1 Rows, 47 mm W, 38891.947 lb Dynamic/31518.214 lb Static Load
- CP#:
- Item#: 6320M-C3
- Mfr#: 6320M-C3
- UPC: 053893725697
- Super finished raceways
- Quiet operations
- ISO standard interchangeable dimensions
- Brass cage for extreme shock loads, high vibration and high forces due to acceleration
- Premium grease for high performance, low torque and less noise
- C3 loose internal clearance
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Deep groove ball bearings are available in a variety of sizes and are the most popular of the rolling bearings. This type of bearing supports radial load and a small degree of axial load in both directions simultaneously. Deep groove ball bearings are popular due to their versatility, affordability and capability to run at high speeds. Most bearings in the 6000 series up to 60 mm bore can be made available in stainless steel (AISI 440C material) upon request.
Timken®, 6320M-C3, ISO Deep Groove Radial Ball Bearing, Standard Straight Bore, Series: 6300, 100 mm Bore, 215 mm OD, 1 Rows, 47 mm Width, Open Closure, 38891.947 lb Dynamic/31518.214 lb Static Load, Steel Bearing, Brass Cage, 4400 rpm Grease/6200 rpm Oil Maximum, -50 to 120 deg C
SPECIFICATIONS
| Series | : | 6300 |
| Bearing Material | : | Steel |
| Load Capacity | : | 38891.947 lb Dynamic/31518.214 lb Static |
| Maximum Speed | : | 4400 rpm Grease/6200 rpm Oil |
| Outside Diameter | : | 215 mm |
| Number of Rows | : | 1 |
| Inside Diameter | : | 100 mm |
| Measurement System | : | Metric |
| Width | : | 47 mm |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_16004_C3_Catalog.pdf
