Timken® 6207H
Timken®

Timken® 6207H

loading
Timken®
Email Print

6207H

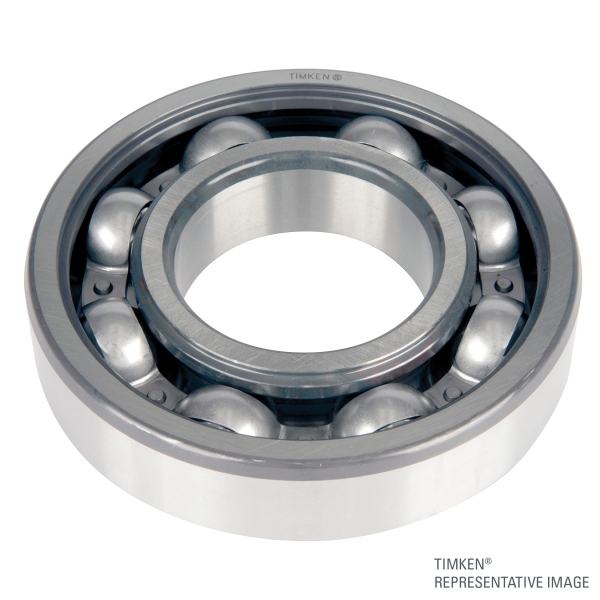

Single Row Deep Groove Ball Bearing

  • Item#: 6207H
  • Mfr#: 6207H
  • UPC: 01399222246
  • Resist corrosion and improve metal detectability with stainless steel rings, balls and cages
  • Handle a wide range of operating temperatures with high-performance lubricants
  • Improve food safety with NSF H1 registered water-resistant grease for shielded and sealed bearings
  • Sufficient radial and axial load capacity at high speeds
  • Open, shielded and sealed types available
  • Timken FVSL613 solid lube option contains an NSF H1 registered synthetic oil that complies with FDA guidelines for lubricants with incidental food contacts under 21.CFR 178.3570
  • Available industrial grease option for other severe service environments
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

With more than a century of knowledge and innovation, Timken is an industry-leader in designing, manufacturing and applying high performance engineered bearings into our customers’ most challenging applications. With one common global quality system across all manufacturing plants, we deliver consistent product performance and reliability anywhere in the world. As a Timken customer, you are connected to a team of application, sales and on-site service engineers who help solve unique equipment challenges resulting in extended uptime, productivity and efficiency. Timken® corrosion-resistant deep groove ball bearings are an ideal fit for a variety of demanding applications. Constructed with stainless rings, rolling elements, and cages, our bearings can improve uptime in a variety of harsh environments, especially in the food processing industry. Our corrosion-resistant deep groove ball bearings are constructed with stainless steel rings, balls and cage. These corrosion-resistant materials and food-grade lubricant can help elevate food safety and production uptime with improved reliability. Standard, thin-section, narrow and miniature constructions are offered in 6000, 6200, 6300 and 600 series. Our stainless steel deep groove ball bearings fit shaft sizes from 8mm to 50mm. Single Row Deep Groove Ball Bearing; Metric Series; 35mm Bore; 72mm OD; 17mm Width; Open; Cylindrical Bore; Stainless Steel Cage; C0 Clearance; ISO P0 Tolerance

SPECIFICATIONS

Bearing Type      :      Unmounted Ball Bearing
Series      :      Unspecified
Bearing Material      :      Stainless Steel
Seal Type      :      Unspecified
Load Capacity      :      21800 lb Dynamic/12300 lb Static
Locking Device      :      Unspecified
Maximum Speed      :      10000 rpm Grease/14000 rpm Oil
Outside Diameter      :      72 mm
Number of Rows      :      1
Overall Width      :      17 mm
Duty Type      :      Unspecified
Inside Diameter      :      35 mm
Mounted      :      Unmounted
Measurement System      :      Metric
Width      :      17 mm

DOCUMENTS

  • pdf
    Catalog     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_6000H_2RS_F_Catalog.pdf
  • pdf
    Specification Sheet     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_6207H_Specification_Sheet.pdf
