Timken® 6203H-2RS
Timken®

Timken® 6203H-2RS

loading
Timken®
Email Print

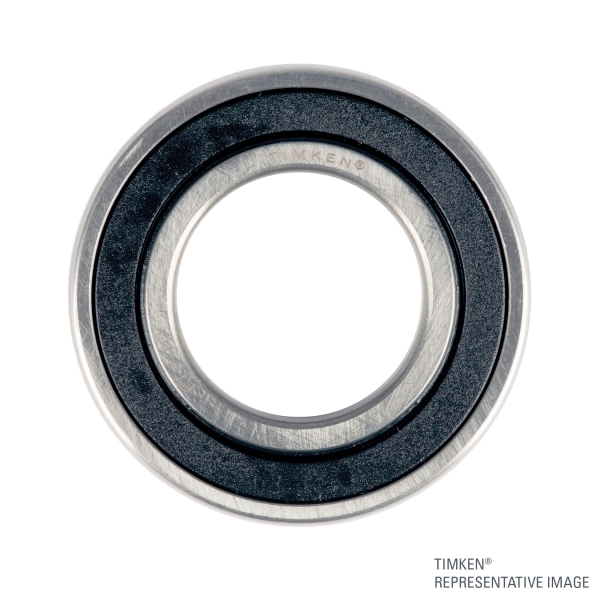

6203H-2RS

Single Row Deep Groove Ball Bearing

  • Item#: 6203H-2RS
  • Mfr#: 6203H-2RS
  • UPC: 01399222727
  • Resist corrosion and improve metal detectability with stainless steel rings, balls and cages
  • Handle a wide range of operating temperatures with high-performance lubricants
  • Improve food safety with NSF H1 registered water-resistant grease for shielded and sealed bearings
  • Sufficient radial and axial load capacity at high speeds
  • Open, shielded and sealed types available
  • Timken FVSL613 solid lube option contains an NSF H1 registered synthetic oil that complies with FDA guidelines for lubricants with incidental food contacts under 21.CFR 178.3570
  • Available industrial grease option for other severe service environments
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

With more than a century of knowledge and innovation, Timken is an industry-leader in designing, manufacturing and applying high performance engineered bearings into our customers’ most challenging applications. With one common global quality system across all manufacturing plants, we deliver consistent product performance and reliability anywhere in the world. As a Timken customer, you are connected to a team of application, sales and on-site service engineers who help solve unique equipment challenges resulting in extended uptime, productivity and efficiency. Timken® corrosion-resistant deep groove ball bearings are an ideal fit for a variety of demanding applications. Constructed with stainless rings, rolling elements, and cages, our bearings can improve uptime in a variety of harsh environments, especially in the food processing industry. Our corrosion-resistant deep groove ball bearings are constructed with stainless steel rings, balls and cage. These corrosion-resistant materials and food-grade lubricant can help elevate food safety and production uptime with improved reliability. Standard, thin-section, narrow and miniature constructions are offered in 6000, 6200, 6300 and 600 series. Our stainless steel deep groove ball bearings fit shaft sizes from 8mm to 50mm. Single Row Deep Groove Ball Bearing; Metric Series; 17mm Bore; 40mm OD; 12mm Width; Double Sealed; Cylindrical Bore; Stainless Steel Cage; C0 Clearance; ISO P0 Tolerance; Grease

SPECIFICATIONS

Bearing Type      :      Unmounted Ball Bearing
Series      :      Unspecified
Bearing Material      :      Stainless Steel
Seal Type      :      Contact
Load Capacity      :      8130 lb Dynamic/3830 lb Static
Locking Device      :      Unspecified
Maximum Speed      :      17000 rpm Grease/25000 rpm Oil
Outside Diameter      :      40 mm
Number of Rows      :      1
Overall Width      :      12 mm
Seal Material      :      Nitrile Rubber
Duty Type      :      Unspecified
Inside Diameter      :      17 mm
Mounted      :      Unmounted
Measurement System      :      Metric
Width      :      12 mm

DOCUMENTS

  • pdf
    Catalog     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_6000H_2RS_F_Catalog.pdf
  • pdf
    Specification Sheet     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_6203H_2RS_Specification_Sheet.pdf
