Timken® 3MMVC9113HXVVSULFS637
Timken®

Timken® 3MMVC9113HXVVSULFS637

loading
Timken®
Email Print

3MMVC9113HXVVSULFS637

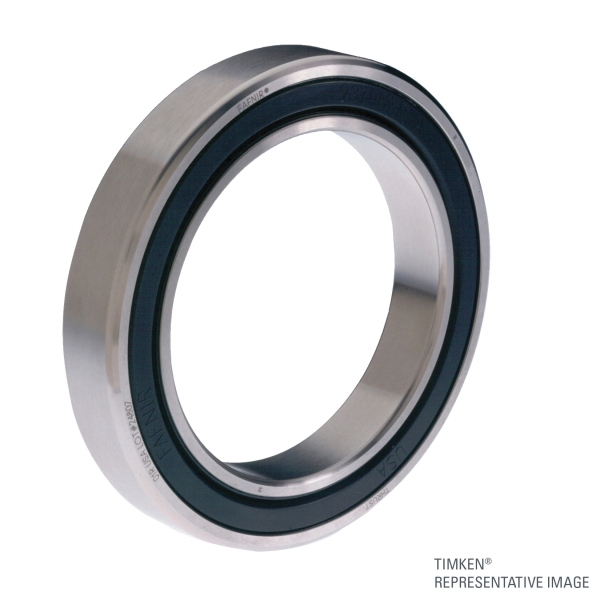

Super Precision Angular Contact Ball Bearing

  • Item#: 3MMVC9113HXVVSULFS637
  • Mfr#: 3MMVC9113HXVVSULFS637
  • UPC: 08779624321
  • Ceramic balls for higher spindle speeds
  • ABEC 9/ISO P2 axial running tolerances for higher accuracy
  • Non-critical features manufactured to ABEC 7/ISO P4 tolerances for cost effectiveness
  • 15 degree initial contact angle for high degree of rigidity in both axial and radial directions and low operating temperatures
  • Clean steel supports longer service life
  • Available series are 9300 (ultra-light), 9100 (extra-light), 200 (Light) and 300 (medium)
  • Available in 15 and 25 degree contact angles
  • Optional cage materials are machined bronze and nylon
  • Available also as duplex and triplex set of bearings
  • Available in low shoulder constructions
  • High speed seals available
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

With more than a century of knowledge and innovation, Timken is an industry-leader in designing, manufacturing and applying high performance engineered bearings into our customers’ most challenging applications. With one common global quality system across all manufacturing plants, we deliver consistent product performance and reliability anywhere in the world. As a Timken customer, you are connected to a team of application, sales and on-site service engineers who help solve unique equipment challenges resulting in extended uptime, productivity and efficiency. Timken precision ball bearings are the perfect choice for high-speed speed applications and ultra-precision equipment that requires tight tolerances and super-fine surface finishes. They also deliver higher yields and lower costs. Our portfolio consists of super precision ball bearings in MM/MMV, MMX and HX tolerances as well as ceramic ball bearings, thin section ball bearings, ball support bearings and miniature & instrument bearings. Ceramic hybrid angular contact ball bearings combine steel rings with ceramic rolling elements to deliver higher spindle speeds and increased dynamic radial stiffness. Our hybrid ceramic precision class bearings fit shaft sizes from 10mm to 200mm. Single Super Precision Angular Contact Ball Bearing; Metric Series; 65mm Bore; 100mm OD; 18mm Width; Double Sealed; Cylindrical Bore; Phenolic Cage; 25deg Contact Angle; ABEC Class 7/9 Tolerance

SPECIFICATIONS

Bearing Type      :      Unmounted Ball Bearing
Series      :      Unspecified
Mounting Type      :      Unspecified
Bearing Material      :      Steel
Contact Angle      :      25 deg
Seal Type      :      Non-Contact
Locking Device      :      Unspecified
Load Capacity      :      22200 N Dynamic/14400 N Static
Overall Length      :      Unspecified
Maximum Speed      :      17760 rpm
Outside Diameter      :      100 mm
Number of Rows      :      1
Overall Width      :      18 mm
Duty Type      :      Unspecified
Seal Material      :      Unspecified
Inside Diameter      :      65 mm
Mounted      :      Unmounted
Measurement System      :      Metric
Width      :      18 mm
Bore Length      :      Unspecified

DOCUMENTS

  • pdf
    Catalog     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_3M205WOP8PRBDBE8350_Catalog.pdf
  • pdf
    Specification Sheet     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_3MMVC9113HX_DUL_Specification_Sheet.pdf
