Timken® 353D-2
Timken®

Timken® 353D-2

loading

353D-2

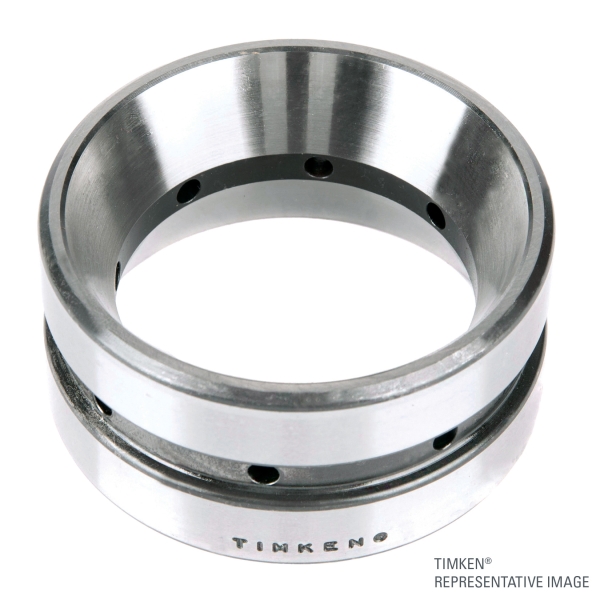

Timken® 353D-2 355 Double Tapered Bearing Cup, 3.548 in OD, 1-3/4 in W Cup, 1.9998 in W Bearing, 0.03 in Maximum House Fillet Radius, 3.27 in Frontface Maximum House Shoulder Diameter

  • Item#: 353D-2
  • Mfr#: 353D-2
  • UPC: 053893010007
    When spacers are used, bearing is furnished as a preset, matched assemblyCup features groove and lubrication holes in the outside diameter
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Timken® Bearing Cup, Double Tapered, Series: 355, 3.548 in Outside Dia, 1-3/4 in Cup Width, 1.9998 in Bearing Width, 0.03 in Maximum House Fillet Radius, 3.27 in Frontface Maximum House Shoulder Diameter, For Use With: Type TDO Tapered Roller Bearings, Chrome Steel, Uncoated

SPECIFICATIONS

Bearing Width      :      1.9998 in
Cup Width      :      1-3/4 in
Finish      :      Uncoated
Material      :      Chrome Steel
Maximum House Fillet Radius      :      0.03 in
Maximum House Shoulder Diameter      :      3.27 in Frontface
Outside Diameter      :      3.548 in
Series      :      355
Suitable For Use With      :      Type TDO Tapered Roller Bearings
Type      :      Double Tapered
Mounted      :      No

DOCUMENTS

  • pdf
    Specification Sheet
    https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Timken_353D_2_Specification_Sheet.pdf
  • pdf
    Catalog
    https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Timken_K21205_2_Catalog.pdf
