2MMV9101HXVVDUMFS637

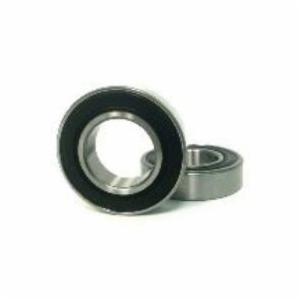

Timken® 2MMV9101HXVVDUMFS637 2MMV9100HX Medium Duty Super Precision Angular Contact Ball Bearing With Steel Ball, 12 mm Dia Bore, 28 mm OD, 2 Rows, 8 mm W, 15 deg, 4560 N Dynamic/1650 N Static Load
- CP#:
- Item#: 2MMV9101HXVVDUMFS637-P01
- Mfr#: 2MMV9101HXVVDUMFS637
- UPC: 087796262737
- Single and double-row ball screw
- Very high-speed
- High accuracy and stiffness
- Low operating temperature
- Low noise and vibration
- Angular contact low shoulder on both inner and outer-ring
- Kluber Isoflex NBU 15 grease lubricant
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
2MMV-HX VV possess all of the high-speed advantages of the HX but with true high-speed seals. These bearing seals protect lubricant from outside contaminants while ensuring internal lubricant retention, extending service life significantly.
Timken® Super Precision Angular Contact Ball Bearing, Medium Duty, Series: 2MMV9100HX, 12 mm Bore, 28 mm OD, 2 Rows, 8 mm Width, 15 deg Contact Angle, Double Seal Closure, 4560 N Dynamic/1650 N Static Load, Phenolic Cage, 78900 rpm Maximum
SPECIFICATIONS
| Series | : | 2MMV9100HX |
| Contact Angle | : | 15 deg |
| Load Capacity | : | 4560 N Dynamic/1650 N Static |
| Maximum Speed | : | 78900 rpm |
| Outside Diameter | : | 28 mm |
| Number of Rows | : | 2 |
| Width | : | 8 mm |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_2MMV9101HXVVDULFS637_Specification_Sheet.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_3M205WOP8PRBDBE8350_Catalog.pdf
