Timken® 23252EMBW22W507C08C3
Timken®

Timken® 23252EMBW22W507C08C3

loading
Timken®
Email Print

23252EMBW22W507C08C3

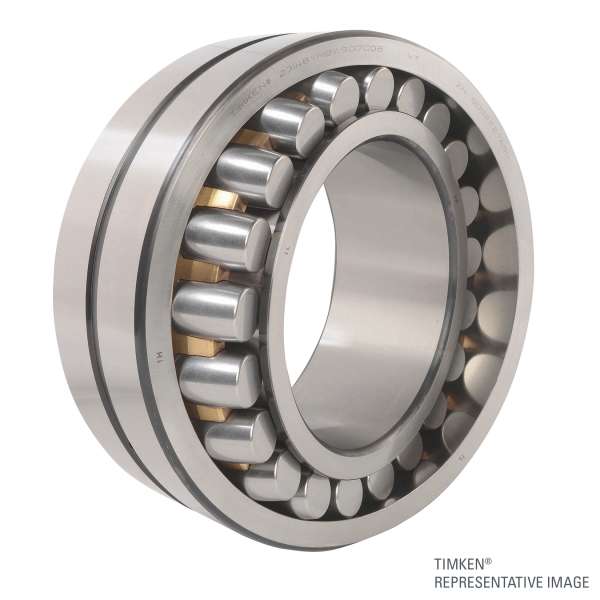

Spherical Roller Bearing

  • Item#: 23252EMBW22W507C08C3
  • Mfr#: 23252EMBW22W507C08C3
  • UPC: 08779617681
  • Longer bearing life achieved from higher capacity (vs. competitors)
  • Longer lubrication life achieved from lower operating temperatures due to reduced internal friction and running torque from cage guided rollers
  • Improved bearing performance in extreme operating conditions, minimizing impact of contaminants that can get caught in the bearing's roller and cage due to an enhanced cage bridge design
  • Extend bearing life in applications with extreme shock/vibration, high gravitational forces and minimal lubrication conditions due to the extra strength and durability provided by our machined brass cage
  • Applications that require higher levels of precision and/or lower levels of runout
  • Applications that require improved fit in the housing, contains outer ring with close OD tolerance
  • Bearing contains holes to facilitate lifting and handling…not for application use
  • Lubrication groove and holes in outer ring to facilitate relubrication through the housing
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

With more than a century of knowledge and innovation, Timken is an industry-leader in designing, manufacturing and applying high performance engineered bearings into our customers’ most challenging applications. With one common global quality system across all manufacturing plants, we deliver consistent product performance and reliability anywhere in the world. As a Timken customer, you are connected to a team of application, sales and on-site service engineers who help solve unique equipment challenges resulting in extended uptime, productivity and efficiency. We are a recognized global leader in spherical roller bearings, with a manufacturing history going back to the early 1900s. With one of the broadest ranges of spherical roller bearings and assemblies fitting shafts of 25mm to 2500mm, our team can help provide the optimal solution for your application. Designed to meet the toughest application conditions, our Spherical Roller Bearings can increase productivity and uptime in your equipment due to optimized internal geometry and higher capacity, resulting in longer bearing life. Timken Spherical Roller Bearings can also lead to more productivity and uptime thanks to lower operating temperatures resulting in extended lubrication life and reduced lubricant usage. Spherical Roller Bearing; Metric Series; 260mm Bore; 479.988mm OD; 174mm Width; Open; Cylindrical Bore; Brass Cage; C3 Clearance; Bearing contains application features

SPECIFICATIONS

Bearing Type      :      Unmounted Roller Bearing
Series      :      Unspecified
Bearing Material      :      Steel
Finish      :      Polished Chrome
Seal Type      :      Unspecified
Load Capacity      :      790000 lb Dynamic/1090000 lb Static
Locking Device      :      Unspecified
Maximum Speed      :      650 rpm Grease/710 rpm Oil
Outside Diameter      :      480 mm
Number of Rows      :      2
Overall Width      :      174 mm
Duty Type      :      Unspecified
Inside Diameter      :      260 mm
Mounted      :      Unmounted
Measurement System      :      Metric
Width      :      174 mm

DOCUMENTS

  • pdf
    Catalog     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_24068KEMBW33W45A_Catalog.pdf
