Timken® 19150-20N07
Timken®

Timken® 19150-20N07

loading
Timken® 19150-20N07
Timken®
Email Print

19150-20N07

Timken® 19150-20N07 19000 Single Tapered Roller Bearing Cone, 1-1/2 in Dia Bore, 0.6504 in W Cone, 0.06 in Max Shaft Fillet Radius, 11400 lb Dynamic/13000 lb Static Load, For Use With Type TS Single Row Tapered Roller Bearing

  • Item#: 19150-20N07-P01
  • Mfr#: 19150-20N07
  • UPC: 053893199313
  • Both rings should be replaced at the same time to maximize reliability and life
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Timken® is the recognized global leader in tapered roller bearings. It has the most extensive offering in the market. With the ability to support high radial and axial loads, high-performance Timken® double row tapered roller bearing components are engineered to provide the greatest durability in the most compact space.

Timken®, 19150-20N07, Tapered Roller Bearing Cone, Single, Series: 19000, 1-1/2 in Bore, 0.6504 in Cone Width, 0.06 in Maximum Shaft Fillet Radius, For Use With: Type TS Single Row Tapered Roller Bearing, 11400 lb Dynamic/13000 lb Static Load, Steel Cage, -65 to 250 deg F

SPECIFICATIONS

Series      :      19000
Cone Width      :      0.6504 in
Load Capacity      :      11400 lb Dynamic/13000 lb Static
Maximum Shaft Fillet Radius      :      0.06 in

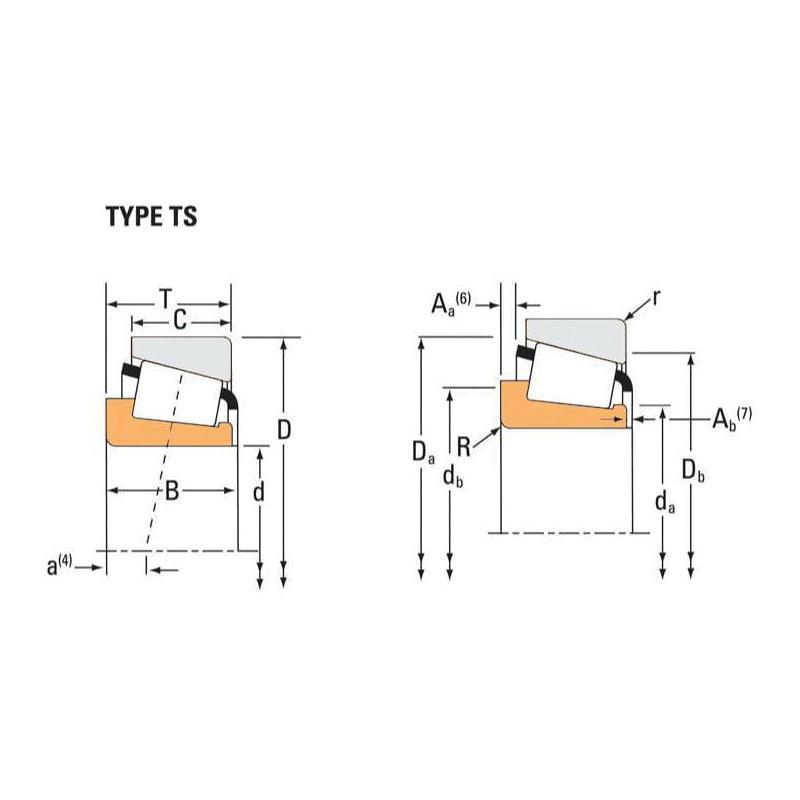

Suitable For Use With      :      Type TS Single Row Tapered Roller Bearing
Inside Diameter      :      1-1/2 in
Mounted      :      No
Measurement System      :      Imperial

DOCUMENTS

  • pdf
    Catalog     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/10000/Timken_14125A_90082_Catalog.pdf
