Thomson® SSUPBO24
Thomson®

Thomson® SSUPBO24

loading
Thomson® SSUPBO24
Thomson®
Email Print

SSUPBO24

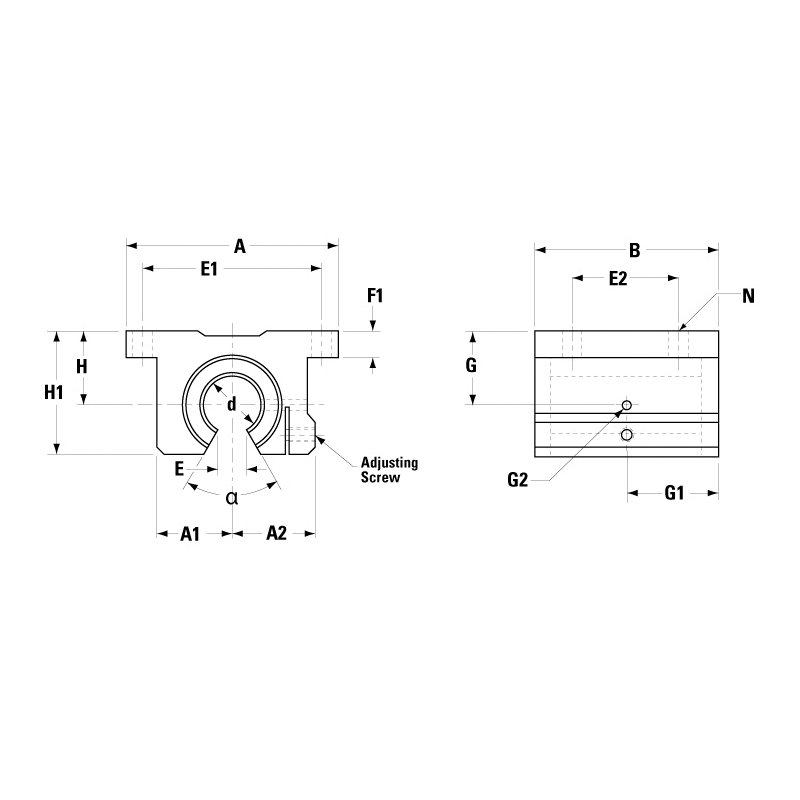

Thomson® Super Smart Ball Bushing® SSUPBO24 Adjustable Open Linear Bearing Pillow Block, 1-1/2 in Dia Shaft, 4-3/4 in OD, 1-3/4 in Center Line to Base, 4-3/4 in L x 3-3/4 in W x 2.94 in H

  • Item#: SSUPBO24
  • Mfr#: SSUPBO24
  • UPC: 662486110064
    • A precision, super finished, dual track bearing plate for optimum system smoothness and performance
    • Longer travel life and minimal machine downtime when replacing conventional linear bearings or the industry standard Super Ball Bushing® bearing
    • RoundRail™ advantage combined with universal self-alignment, eliminating the need for derating factors commonly required when using linear guides
    • A coefficient of friction as low as 0.001 and allows the use of smaller, less expensive motors, belts, gears and ball screws when replacing high-friction, plain bearings
    • Double-lip integral wipers that keep out dirt while retaining lubrication and travel life is maximized
    • Steady state travel speeds up to 10 ft/s and accelerations to 450 ft/s without the use of derating factors
    • Universal self-alignment
    • The bearing plate is designed to rock 0.5 deg about the hardened precision ground outer ring
    • The second key design feature of the Super Smart Ball Bushing® bearing plate is its ability to roll
    • The shape formed by the rock and roll features allows the Super Smart Ball Bushing® bearing plate to rotate about its center
    • The Super Smart Ball Bushing® bearing provides twice the load capacity of the industry standard Thomson® Super Ball Bushing® bearing and six times the load capacity of conventional linear bearings
    • The Super Smart Ball Bushing® bearing provides eight times the travel life of the industry standard Thomson® Super Ball Bushing® bearing and 216 times the travel life of conventional linear bearings
    • Open pillow blocks are for continuous supported shafting
    • For class L shafting
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

The Super Smart Ball Bushing® bearing family represents a major advancement in linear bearing technology worldwide. These patented and universally self-aligning bearings offer twice the load capacity or eight times the travel life of our industry standard Super Ball Bushing® bearing. To minimize installation time and cost, the Super Smart Ball Bushing® bearing can be ordered factory-installed in an industry standard single or twin pillow block.

Thomson® Super Smart Ball Bushing® Linear Bearing Pillow Block, Adjustable Open, Series: SSUPB, 1-1/2 in Shaft Dia, 4-3/4 in Outside Dia, 1-3/4 in Center Line to Base, 2.94 in Height, 4-3/4 in Length, 3-3/4 in Width, 3880 lb Dynamic, Steel Bearing, 185 deg F

SPECIFICATIONS

Bearing Material      :      Steel
Load Capacity      :      3880 lb Dynamic
Series      :      SSUPB
Temperature Rating      :      185 deg F
Type      :      Adjustable Open
Shaft Diameter      :      1-1/2 in
Outside Diameter      :      4-3/4 in
Center Line to Base      :      1-3/4 in
Length      :      4-3/4 in
Width      :      3-3/4 in
Height      :      2.94 in

DOCUMENTS

  • pdf
    Catalog     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/440/Thomson_FNYBU06_Catalog.pdf
